Home Equipment HEAVY DUTY STEEL STEPS - SINGLE TREAD DOUBLE WIDTH

HEAVY DUTY STEEL STEPS - SINGLE TREAD DOUBLE WIDTH

Wide-format single-tread steel steps for high-traffic portable building access. At 2200mm wide, the SS10 Double Width suits busier entry points, installs in minutes with slotted fixing, and redeploys across projects for years.
Optional
Add to Quote
QTY
Description
Technical Specifications

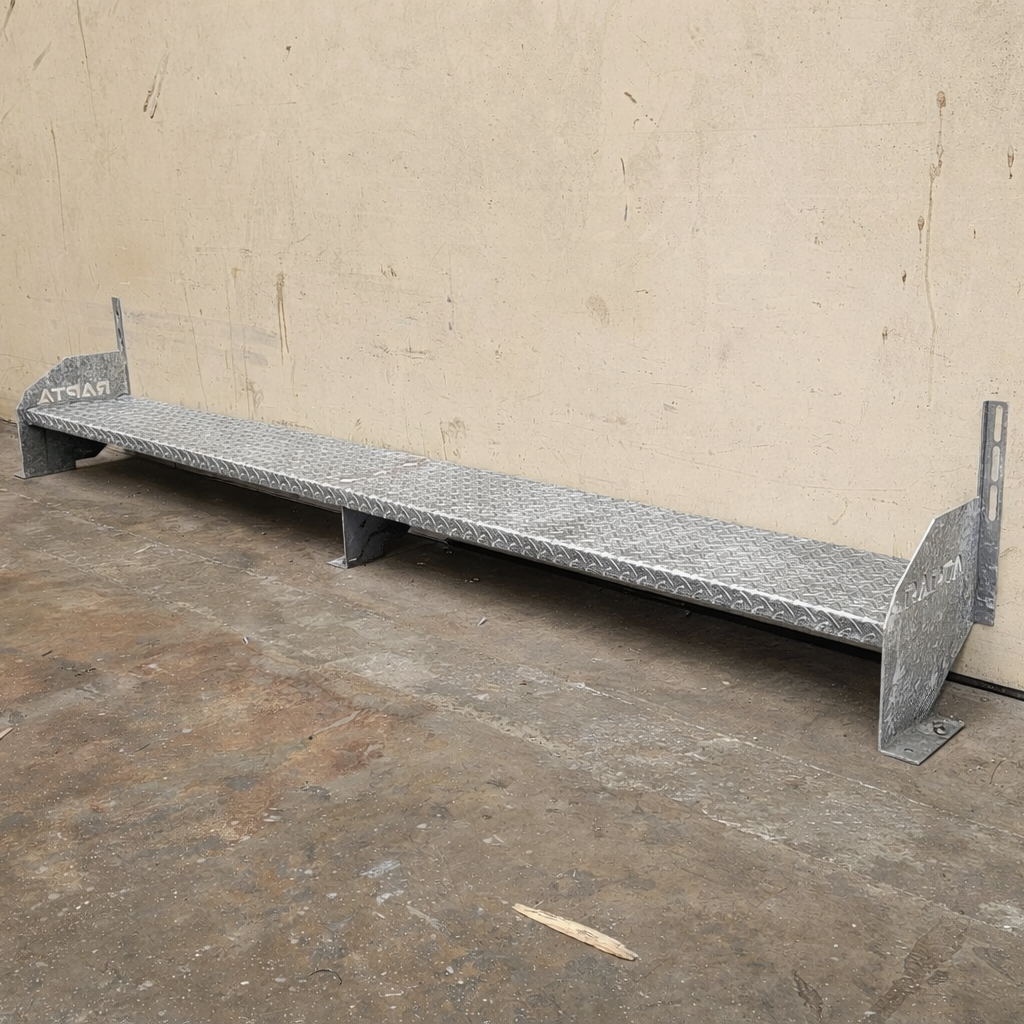

Prefabricated, hot-dip galvanised single-tread steel steps provide fast, safe access to portable buildings on site. Suitable for finished floor levels (FFL) of 160-380mm, these 2200mm wide steps feature easy slotted fixing with 6 x 100mm holes and optional adjustable feet for uneven surfaces.

Engineered for tough Australian conditions, they install fast, fit first time and perform predictably. With 1-man carry design for easy handling and fully reusable across multiple projects, they save significant labour time, reduce rework and cut waste versus site-built timber steps. Ideal for higher traffic areas, with optional non-slip FRP nosing in black or yellow.

Technical Specifications

  • Model: SS10 Double Width
  • Tread Configuration: Single tread — 1 × 160mm rise
  • Width: 2200mm
  • FFL Range: 160–380mm
  • Fixing: 6 × 100mm slotted holes

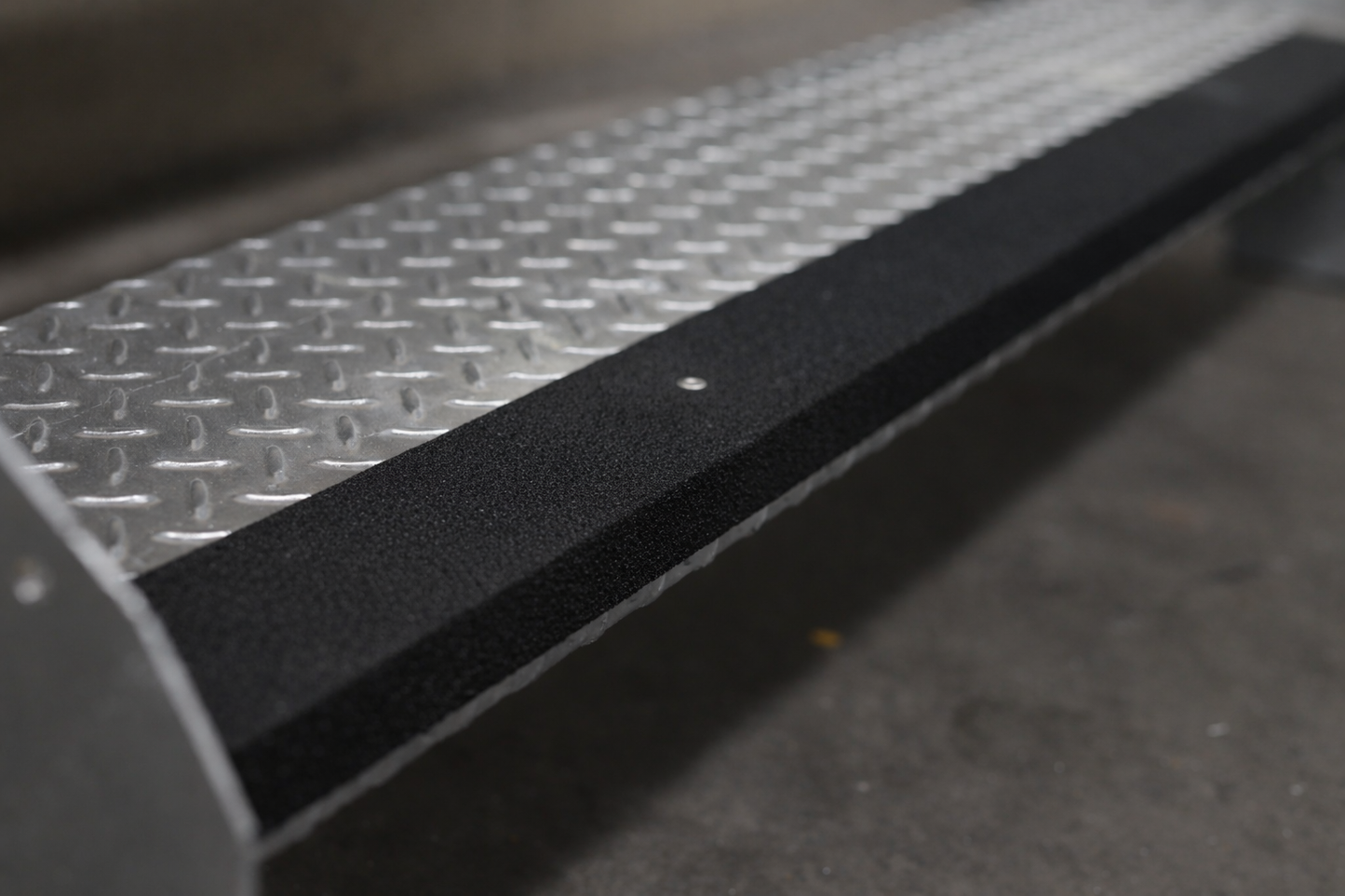

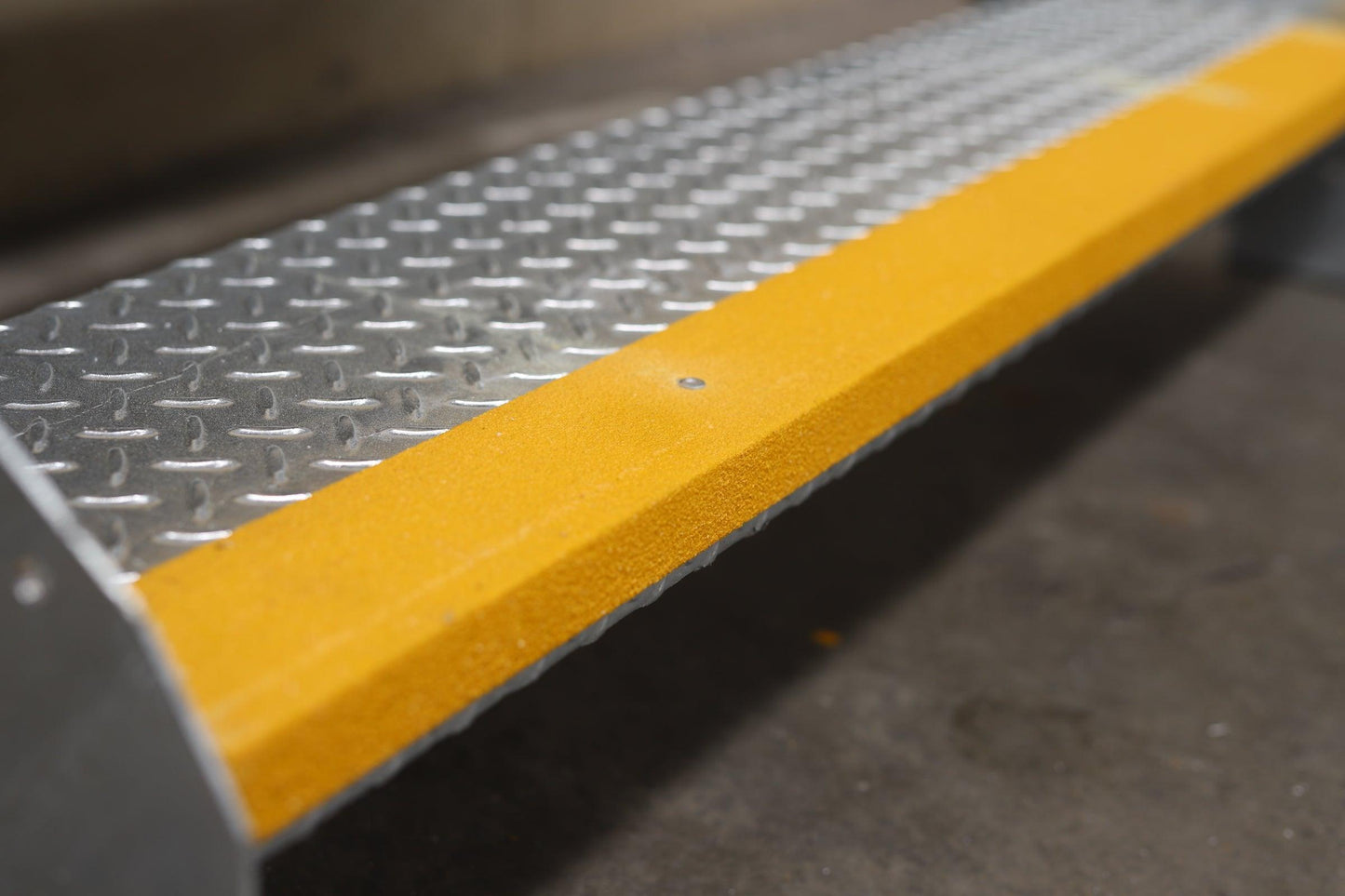

  • Surface: Non-slip FRP nosing (yellow standard, black option)
  • Frame: Hot-dip galvanised steel
  • Feet: Optional adjustable feet for uneven ground
  • Handling: 1-man carry design


Suitable for SS10 step height range. For standard-width option see Heavy Duty Steel Steps – Single Tread (1120mm). Contact RAPTA for project quantities or site-specific configuration.
