MODULAR COVERED WALKWAY SYSTEM
Rapid Deployment. Seamless Pack Down.

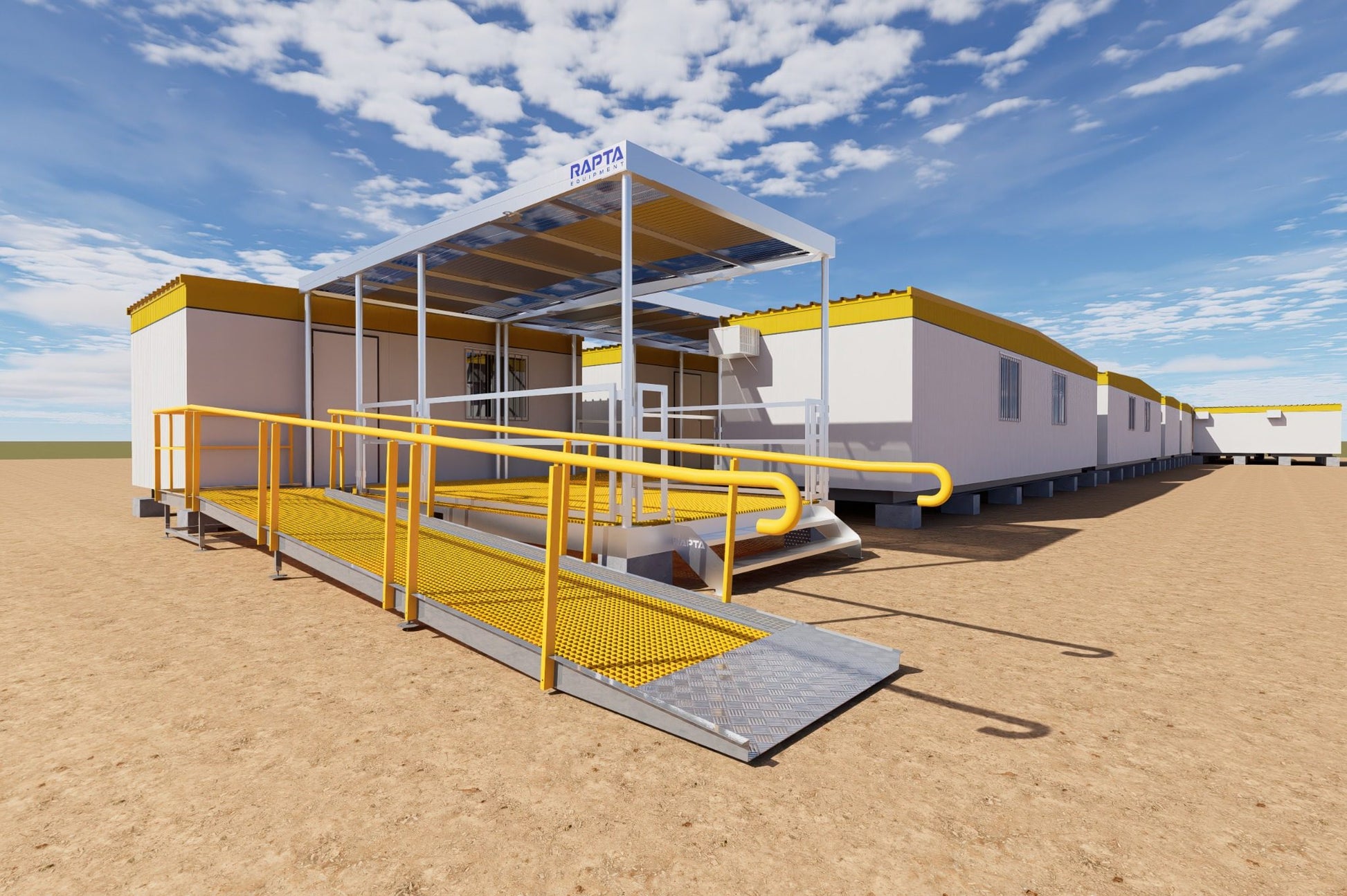

Get your site compound operational from day one. RaptaCover™ is a pre-engineered modular system designed to adapt to a range of compound layouts.

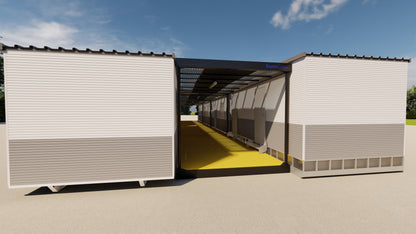

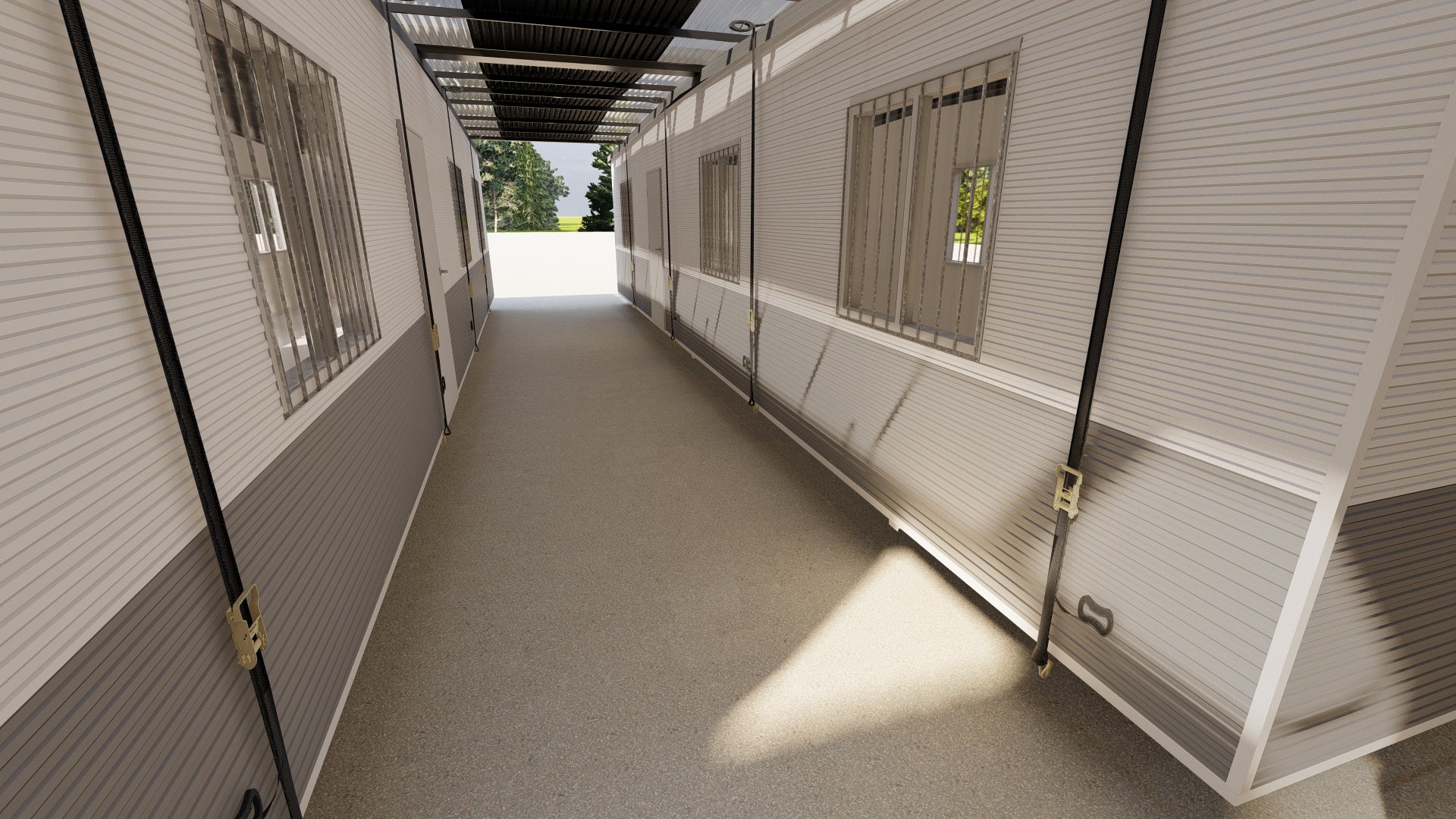

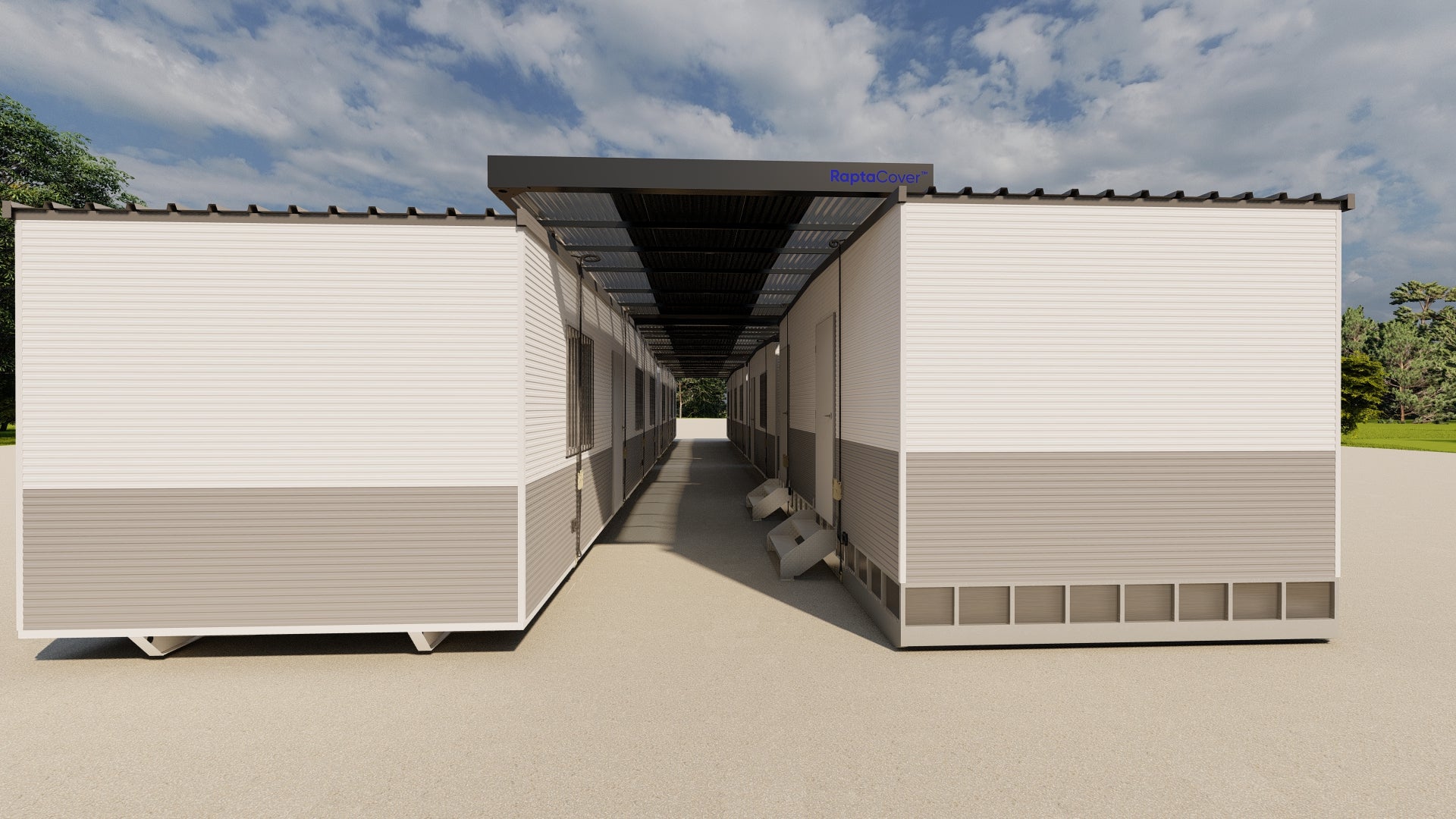

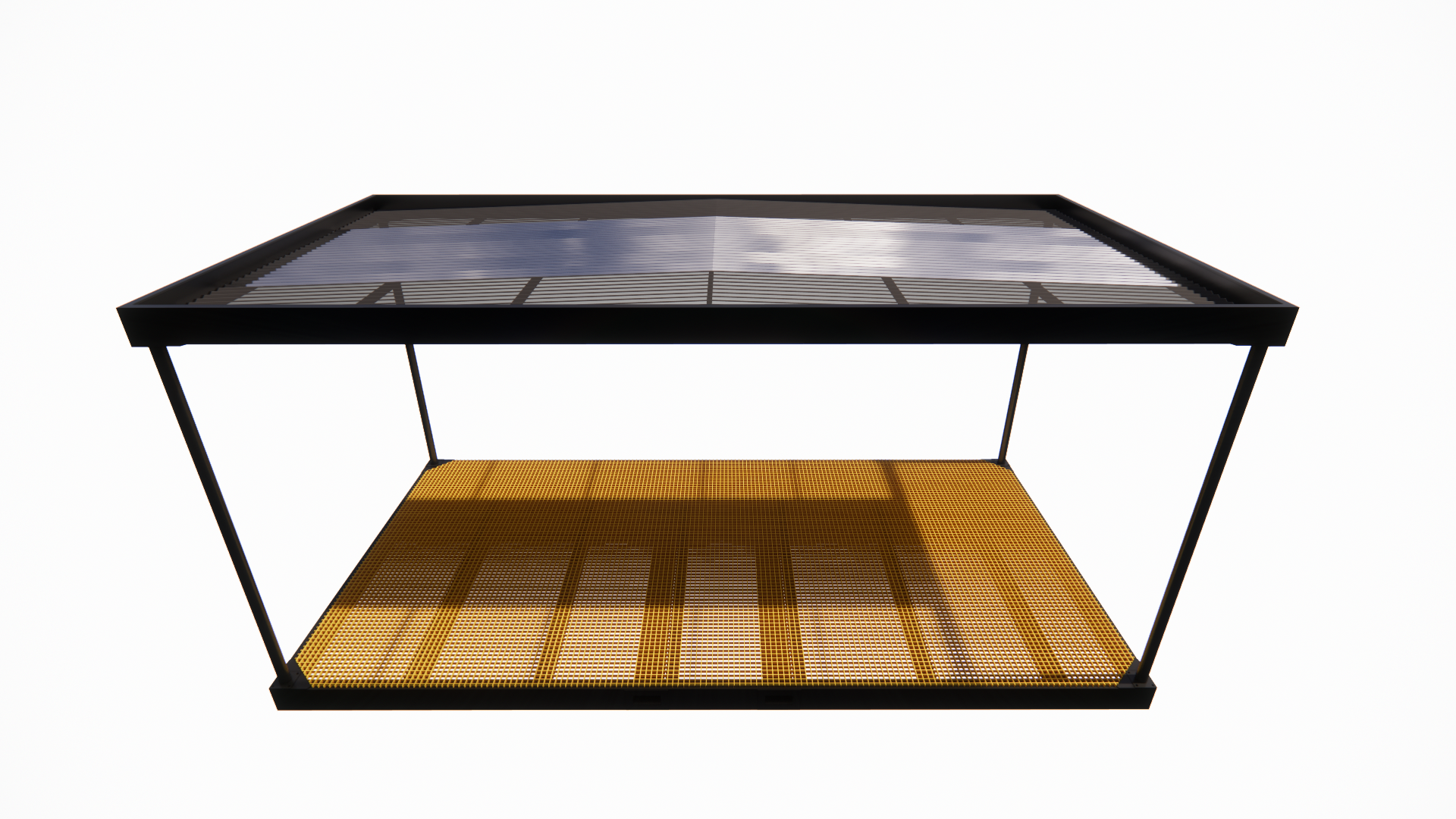

Each 6m × 3m module is flat-packed for efficient transport and can be installed as either a roof-over configuration or raised covered walkway—helping keep crews dry and out of the mud.
KEY FEATURES
- Installs in approximately 18 minutes per module with an experienced crew
- Fast, repeatable installation with no on-site improvisation

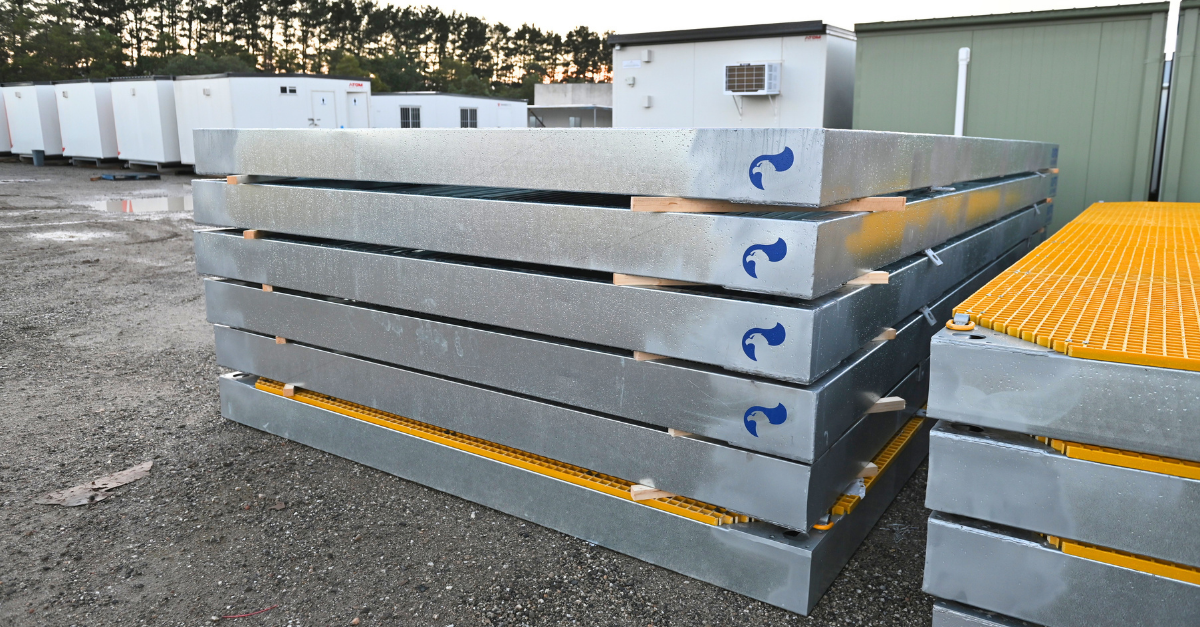

- Flat-packed and stackable for efficient transport and storage

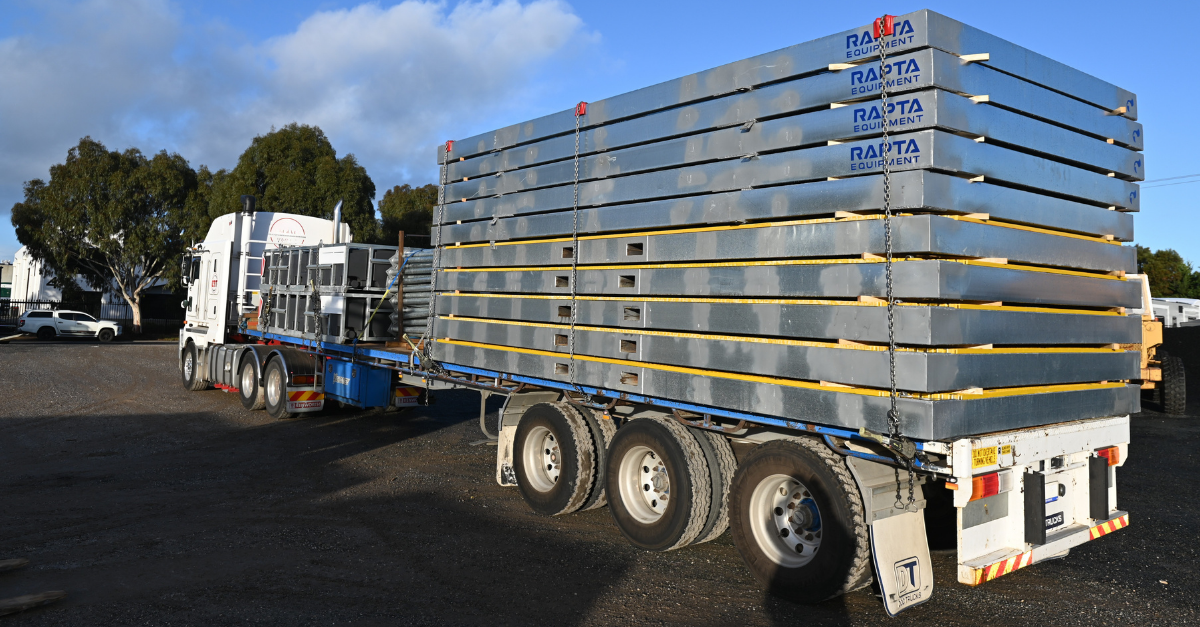

- Up to 432m² of covered walkway transported on one semi-trailer
- Reusable across multiple projects
- Less timber, fewer labour hours and reduced site waste
- Helps reduce on-site installation and WHS exposure
CONFIGURATIONS

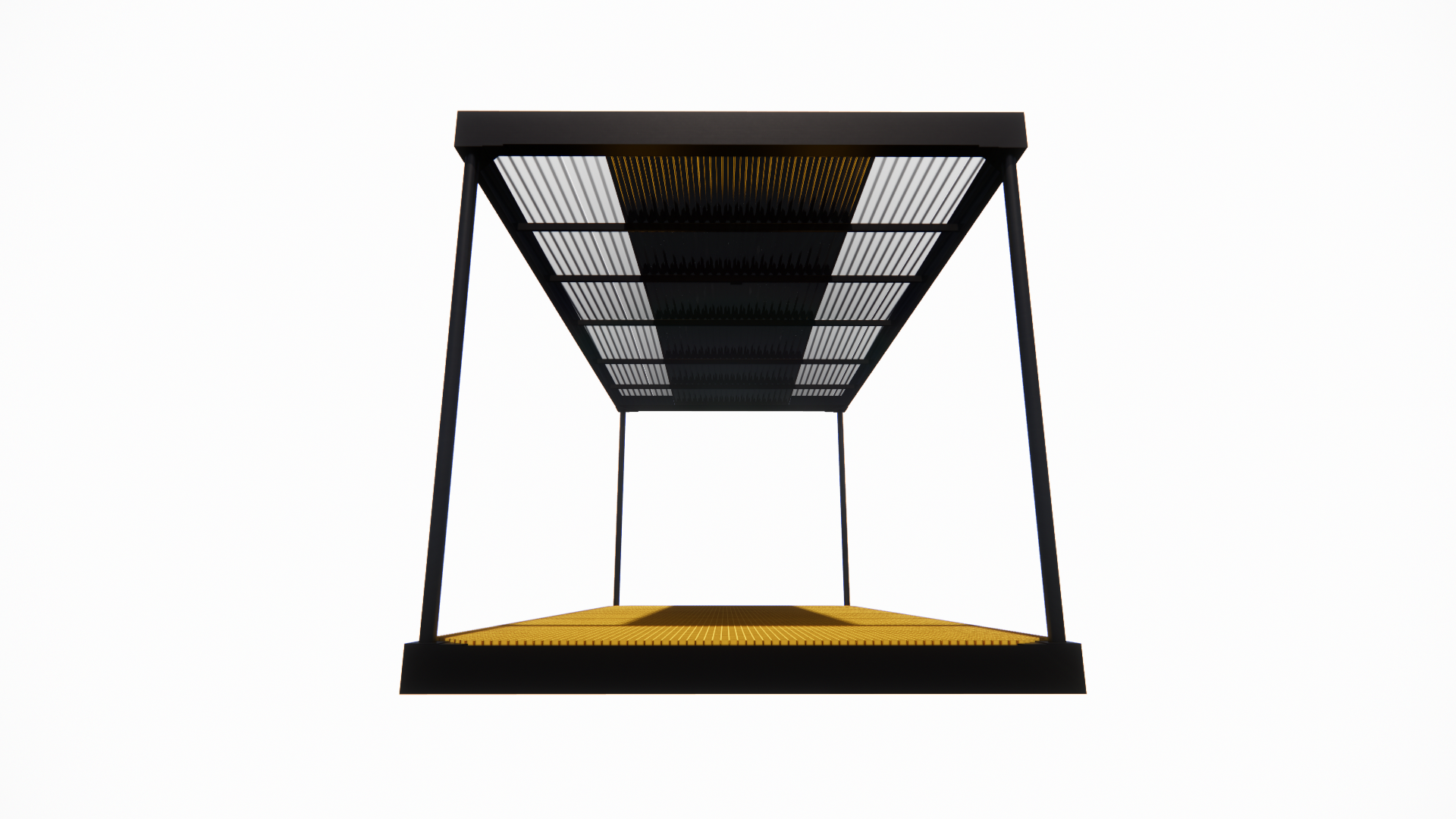

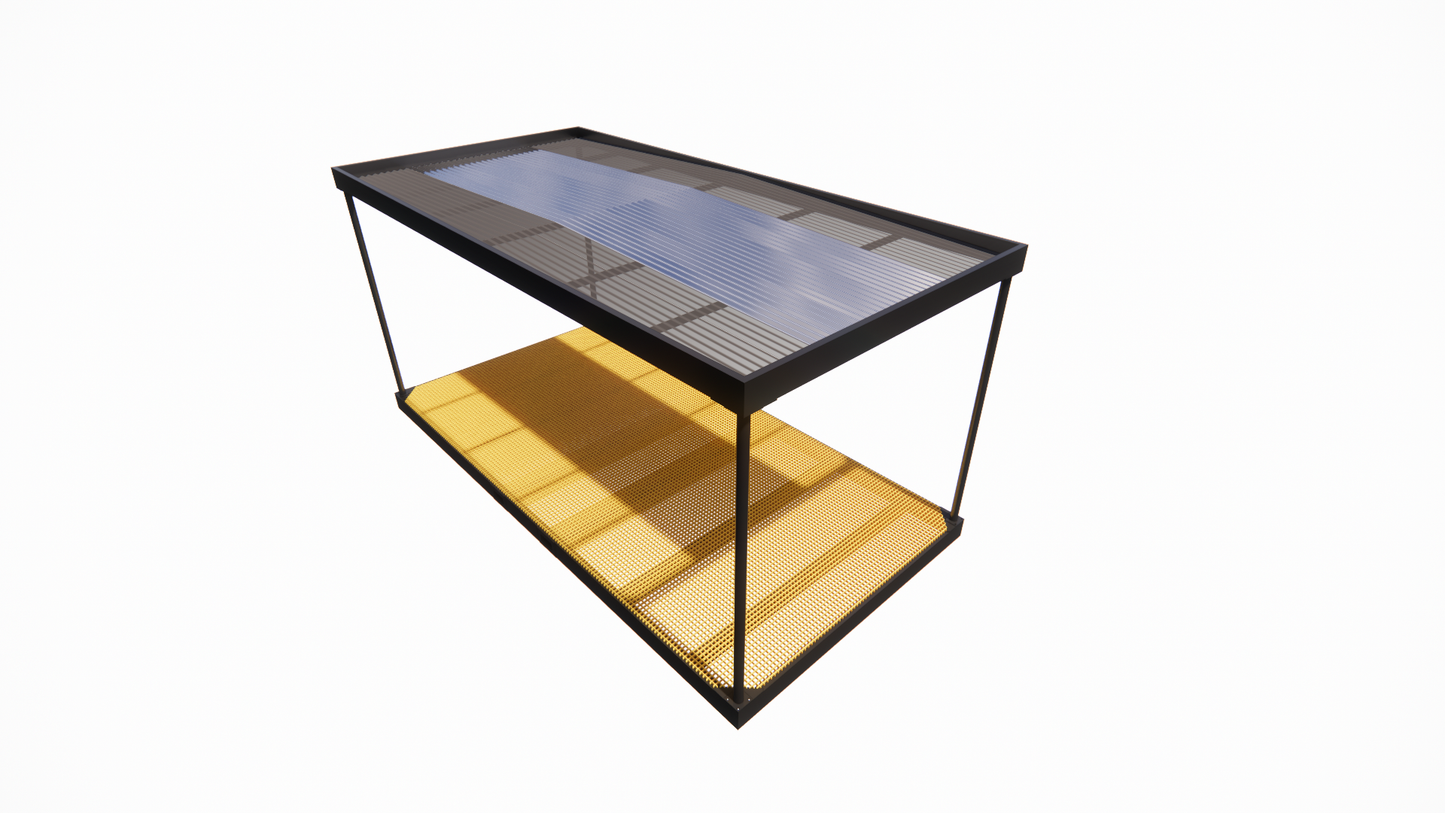

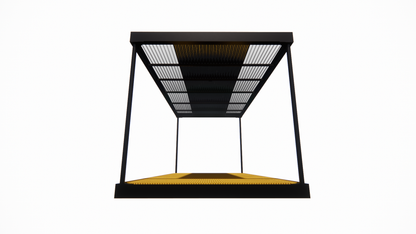

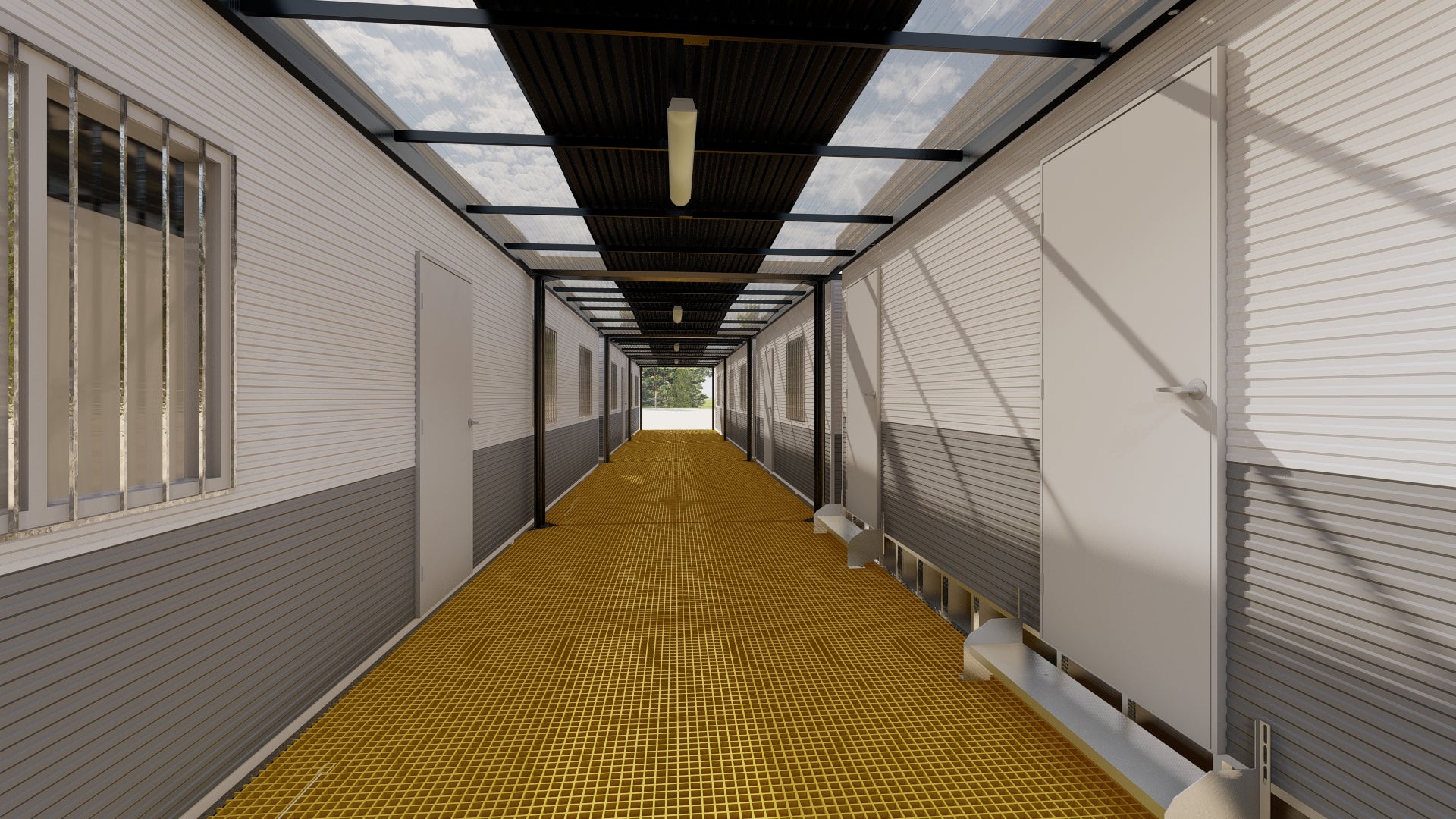

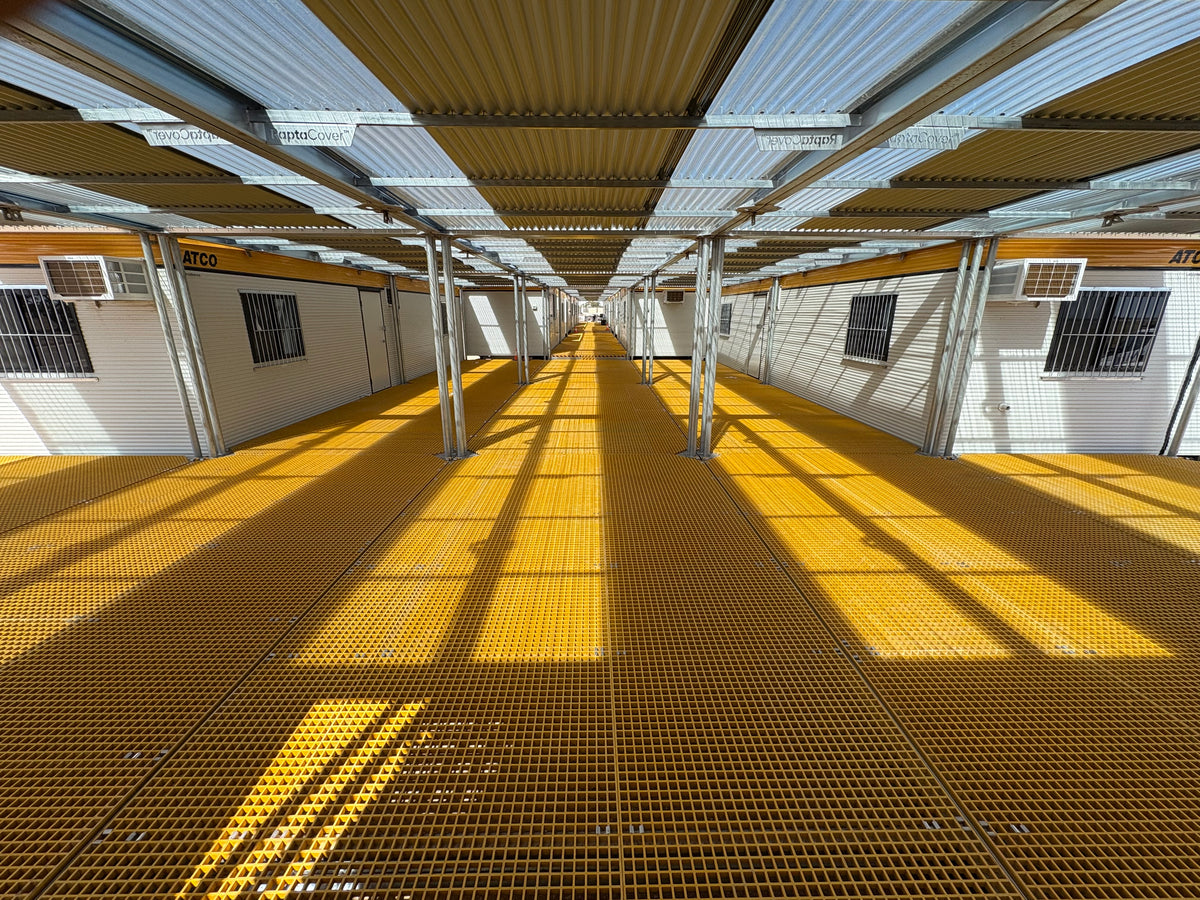

- Raised covered walkway

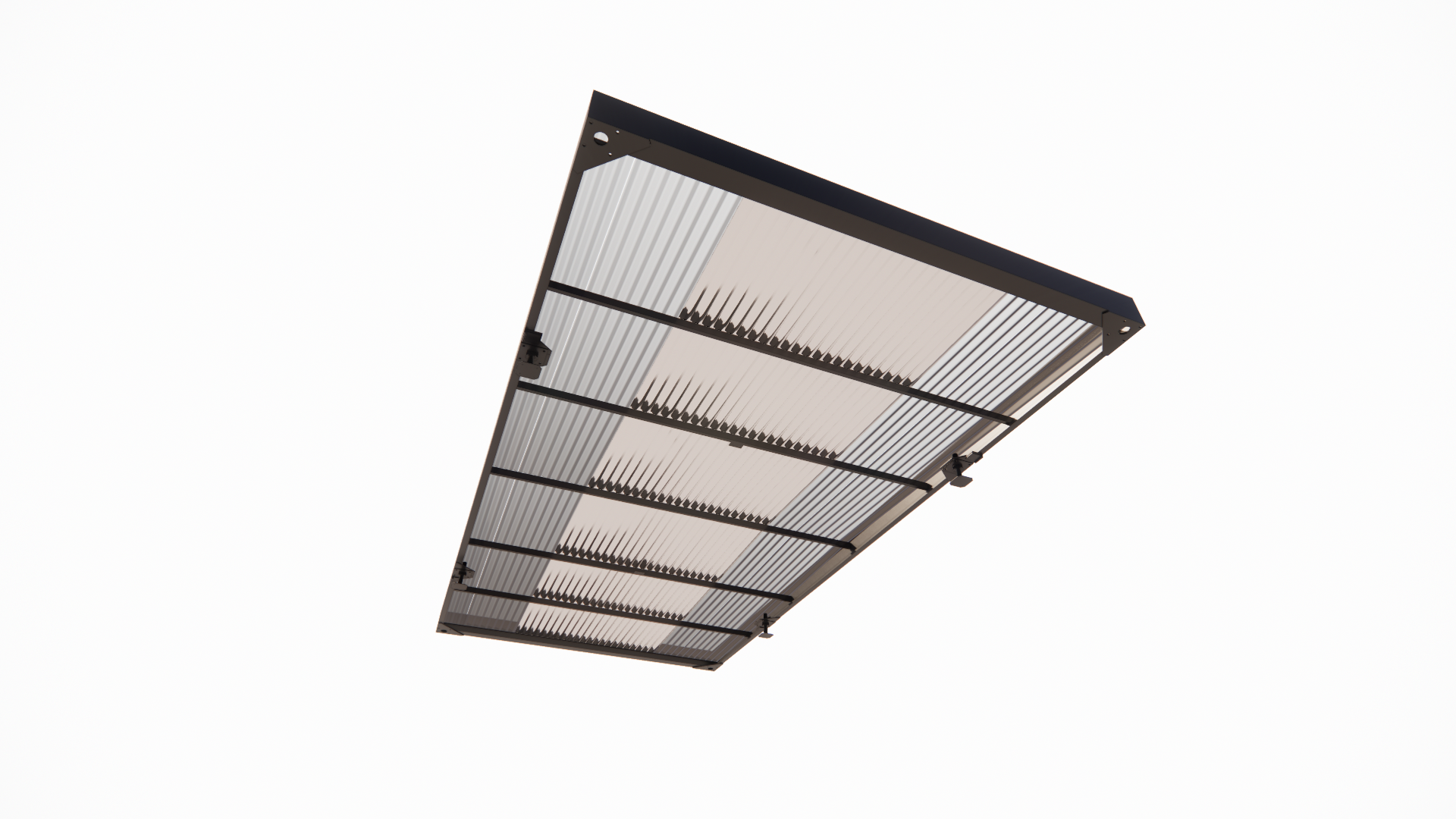

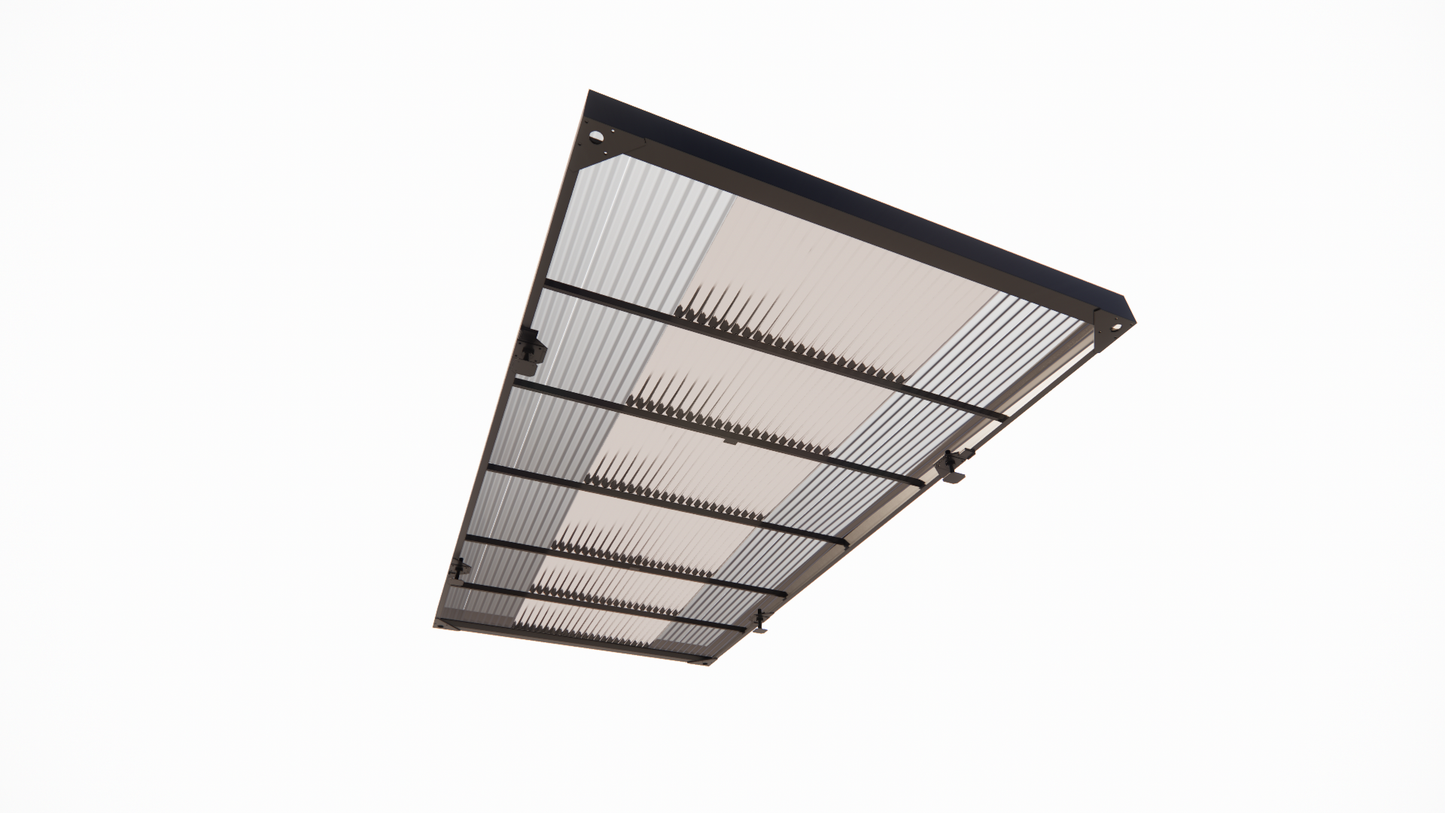

- Roof-over configuration
TECHNICAL OVERVIEW

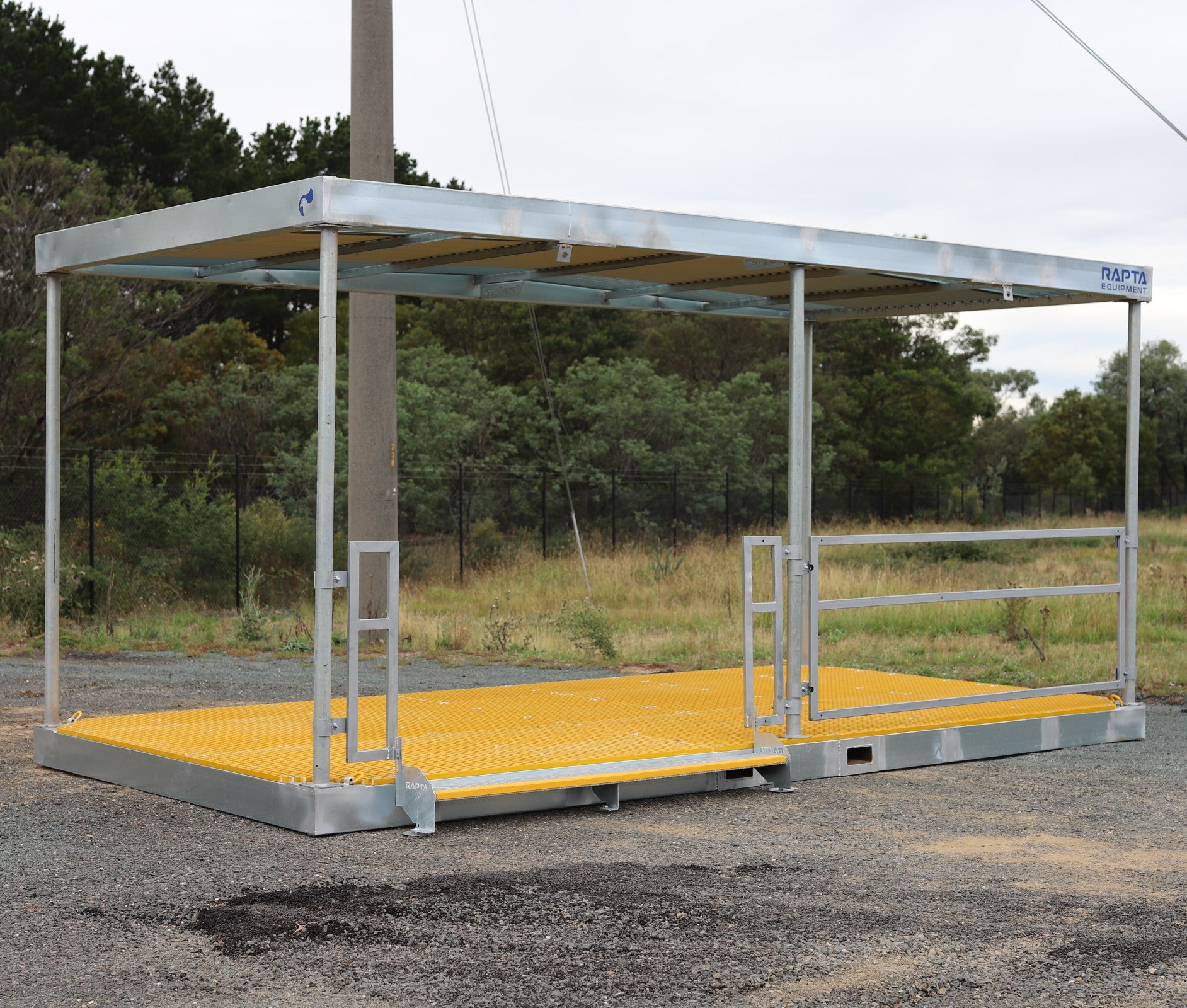

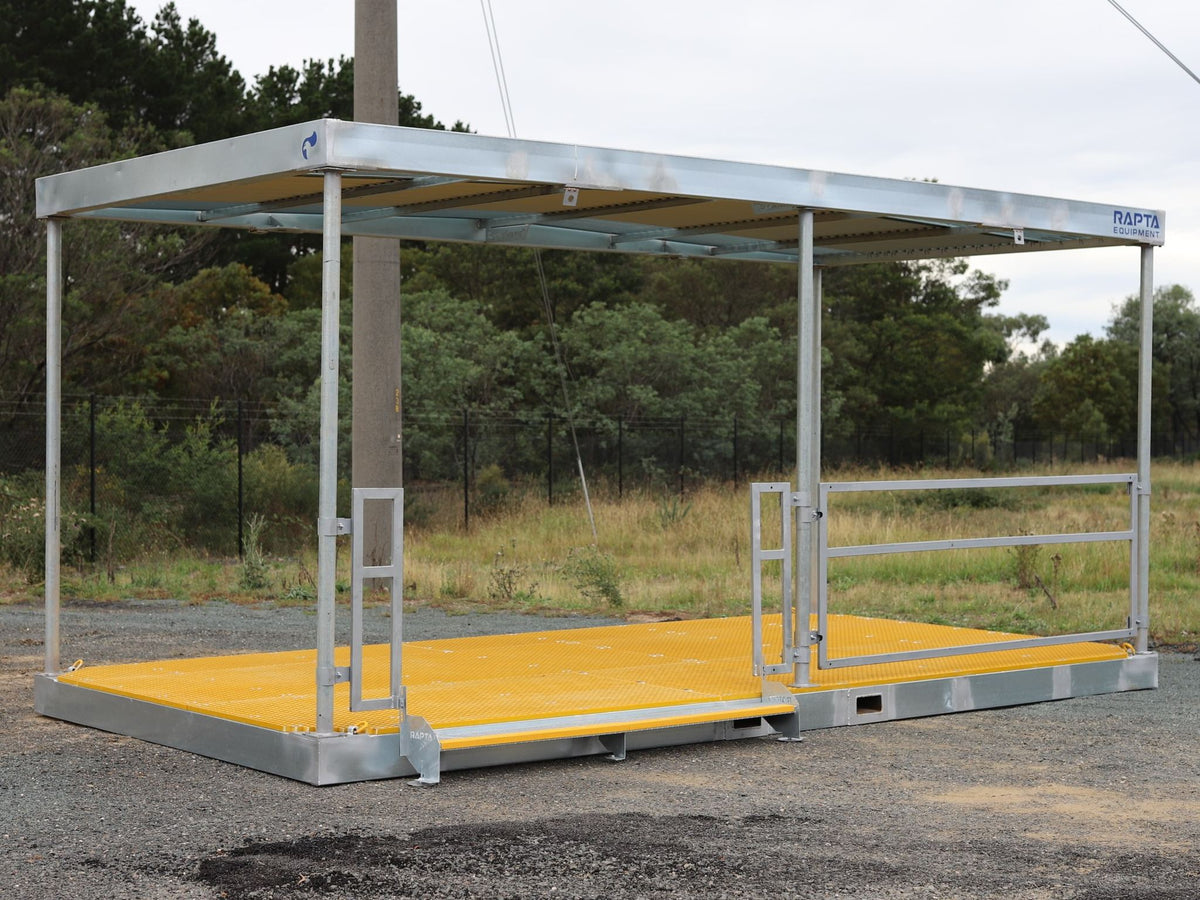

- Module footprint: 6000mm L × 3000mm W
- Overall Assembled Height: 2935mm H with posts
- Roof-over and feet weight: 260kg
- Full-system weight: 983kg, including roof-over, walkway and posts
AVAILABLE ACCESSORIES
- Flashing kits for weather sealing at building interfaces
- Infill walls for enclosed weather protection

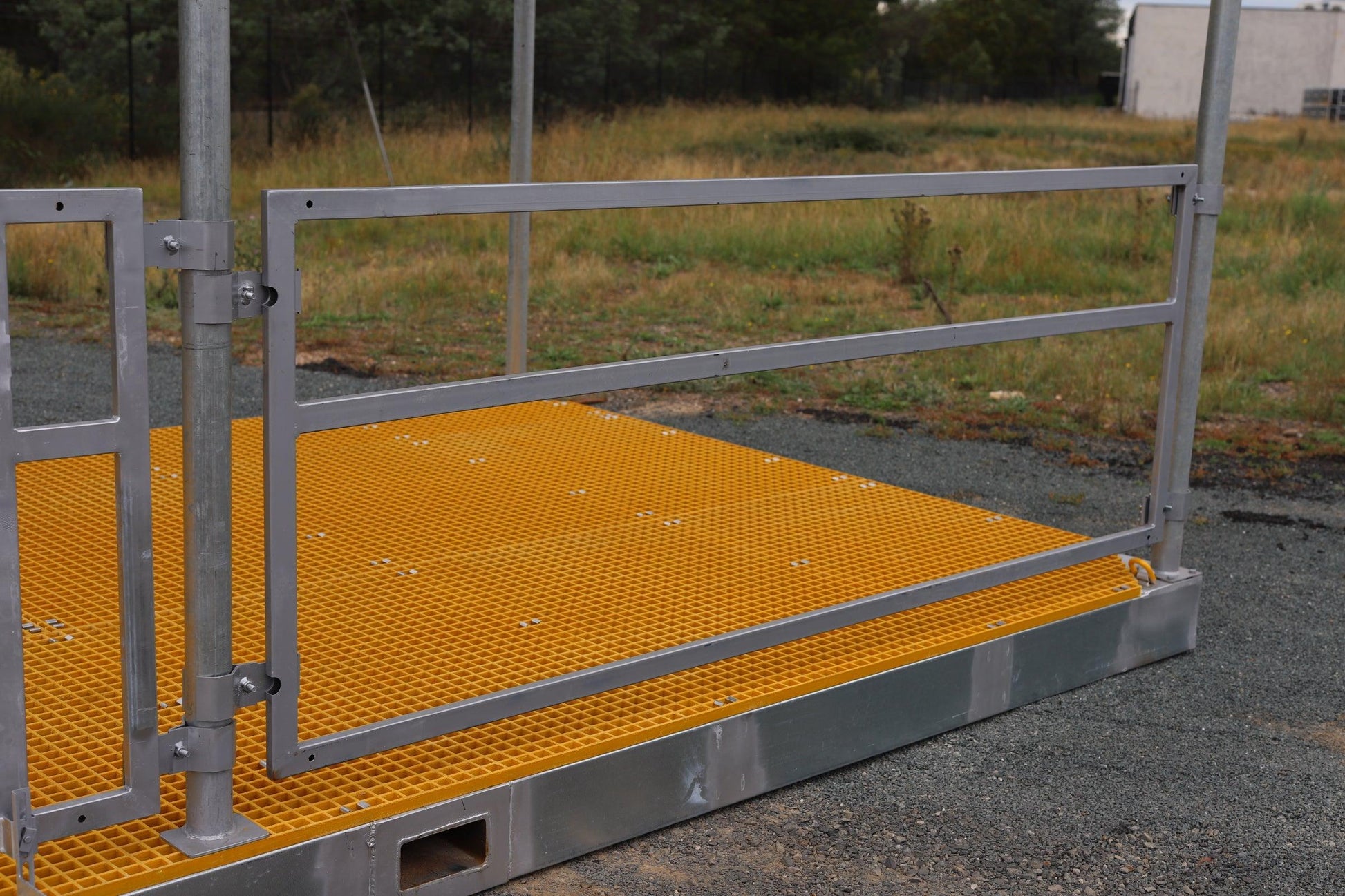

- Balustrades for elevated sections

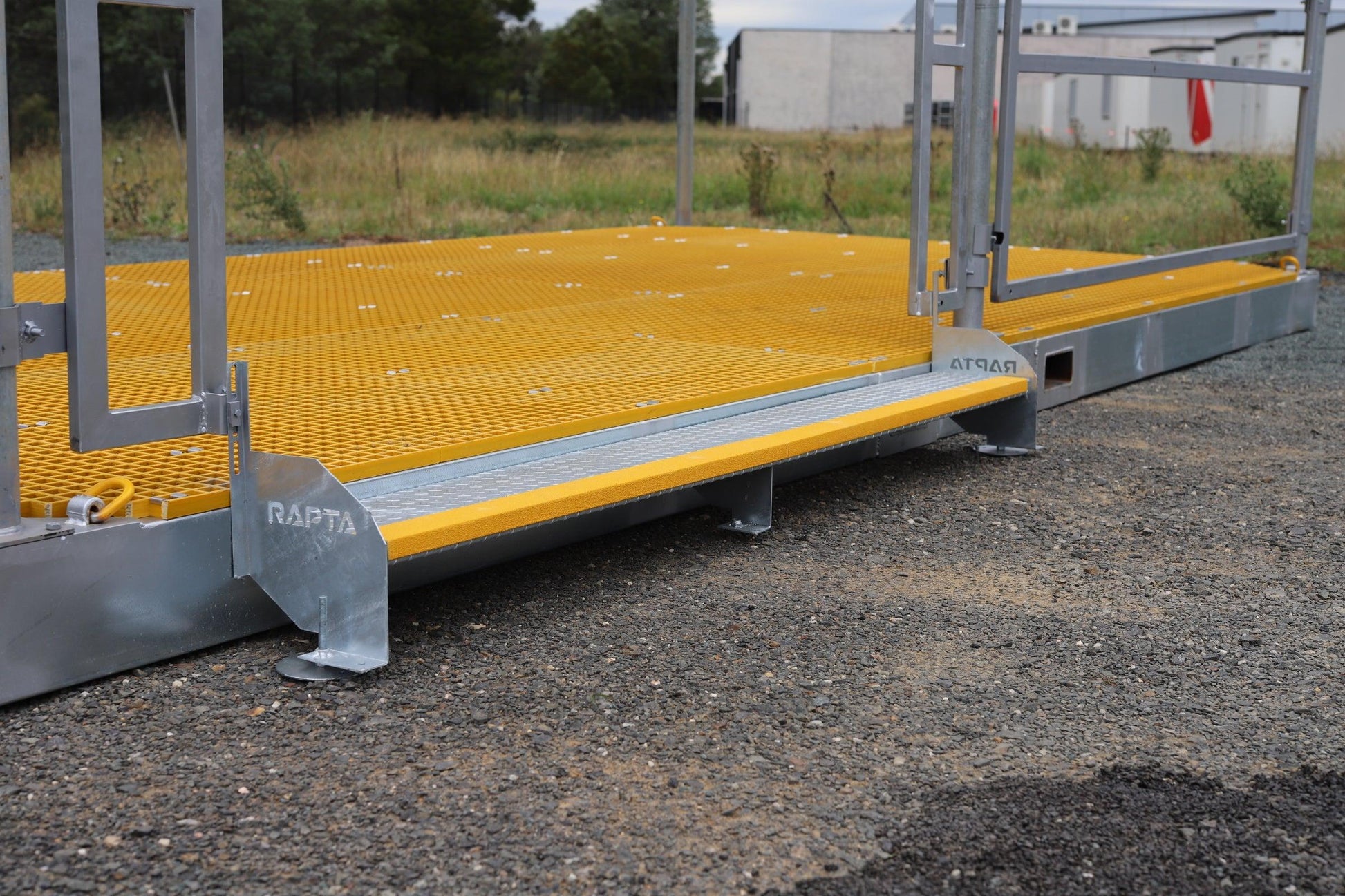

- Steel step integration for ground-level access
- Tie-down straps
- Concrete blocks and fixing plates
FAQs

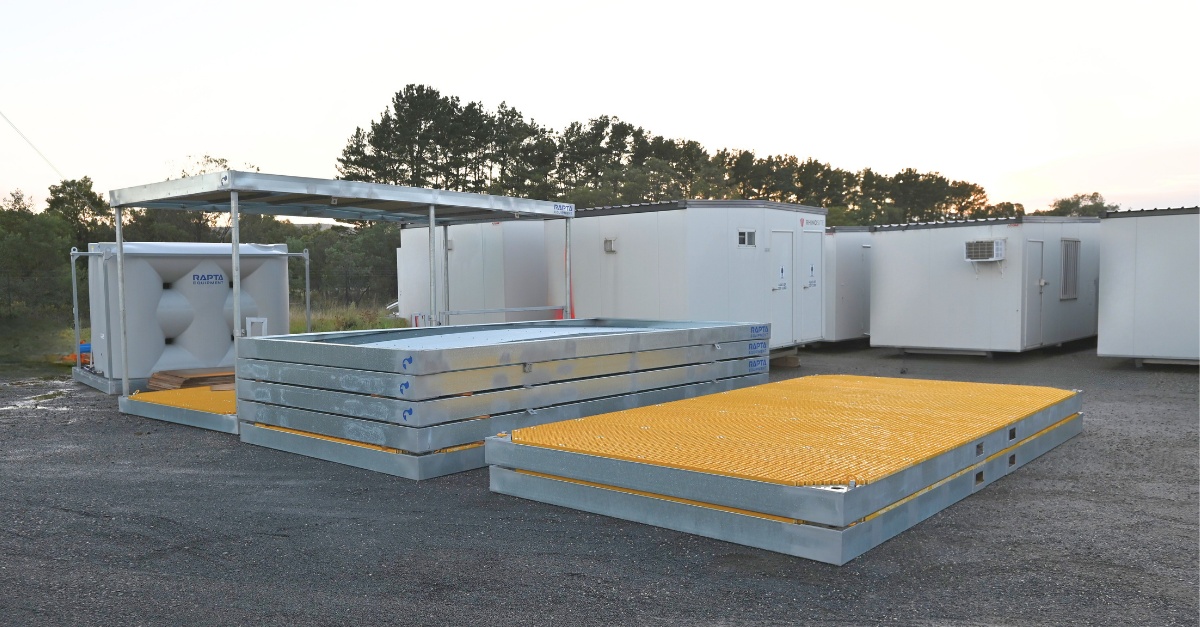

Can the RAPTACover stack for storage and transport?
Yes, it can be stacked for storage and transport. On a standard flat-bed semi-trailer, you can stack up to 162l/m of Roof-over.
Can I buy just the Roof-over?
Yes, all parts of the RAPTACover system can be purchased individually. We would suggest that when purchasing the Roof-over only, you purchase the roof mount adjustable feet and the stackable storage crate.
Do I need qualifications to install/ assemble the RAPTACover?
No formal qualifications are required for installation. Your crane operator needs to rig and position the units, after which installation is completed by tightening the bolts and installing the flashings (when required)
What equipment do I need to install/ assemble RAPTACover?
Here is a list of equipment you will need: Besser blocks (for blocking and levelling), Franna or Crane truck or Forklift, Laser level, Impact wrench/ socket wrench with 19mm Socket, Step Ladder
How long does it take to set up?
It takes approximately 3 minutes per l/m. Traditional methods are typically around 192 minutes per l/m.
Is the RAPTACover engineered?
Yes, it has been structurally engineered, all lifting/tie-down points have been rated and it is certified for wind region B
How do I move and store it?
All walkway modules have tine pockets included. RAPTA offers a stackable crate for the storage of the Roof-over modules. This means that, loading and unloading of trucks at your yard/ lay down is made very simple.
Is it water tight?
We have developed a flashing system to simplify the process. RAPTA can supply the flashings. We will also provide a flashing drawing on purchase so that it can be supplied by any sheet metal supplier.
Can I use the RAPTACover as an awning?
Yes, in either the Roof-over and Walkway or Roof-over (only) application, it can be used as an awning. In the latter application, the posts will need to be mounted to concrete blocks on site.
