HEAVY DUTY STEEL PLATFORM
Purpose-built landing platform for the RAPTA Steel Step range. Reconfigurable leg frames suit SS10–SS50 heights, with non-slip FRP grating, two handrails as standard, and a hot-dip galvanised frame built for long-term site deployment.
Add to Quote
QTY
One platform. Five heights. No improvised landings.
Give every RAPTA Steel Step configuration a purpose-built, level landing. The prefabricated Steel Platform pairs with the SS10–SS50 range and features a removable deck with interchangeable leg frames, so one platform can be reconfigured as site needs change.
WHY IT WORKS
- Removable platform top - swap leg frames to suit SS10 through SS50 step heights.
- Two handrails included as standard with every platform variant.
- High-visibility yellow, non-slip FRP grating surface
- Prefabricated and engineered to fit RAPTA Steel Steps - no site fabrication required.
- Hot-dip galvanised frame for corrosion resistance and long service life.

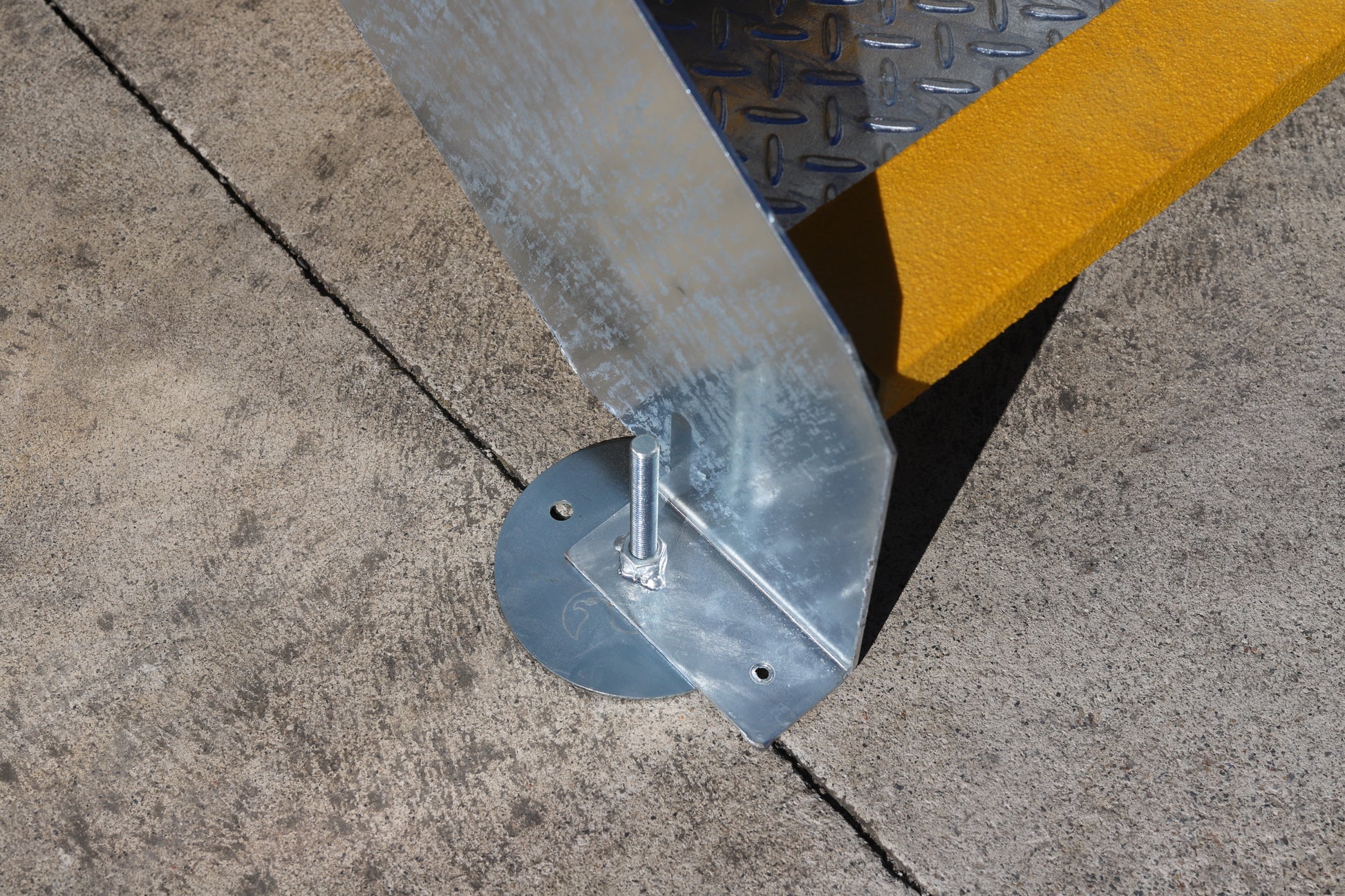

- Adjustable feet for a stable, level landing on uneven ground.
- Standardised fixing slots for fast, repeatable assembly.
- Reusable across projects - buy once, redeploy for years.
LEG FRAME OPTIONS

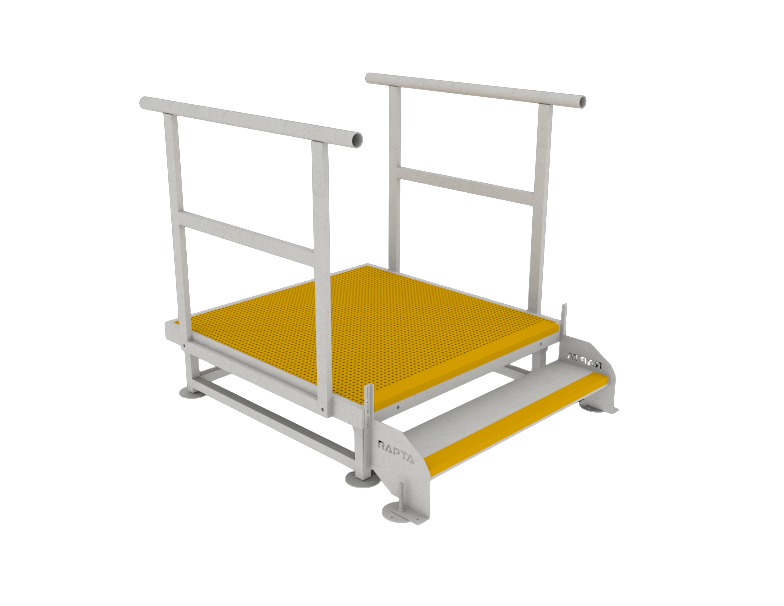

- SS10: 320–400mm FFL

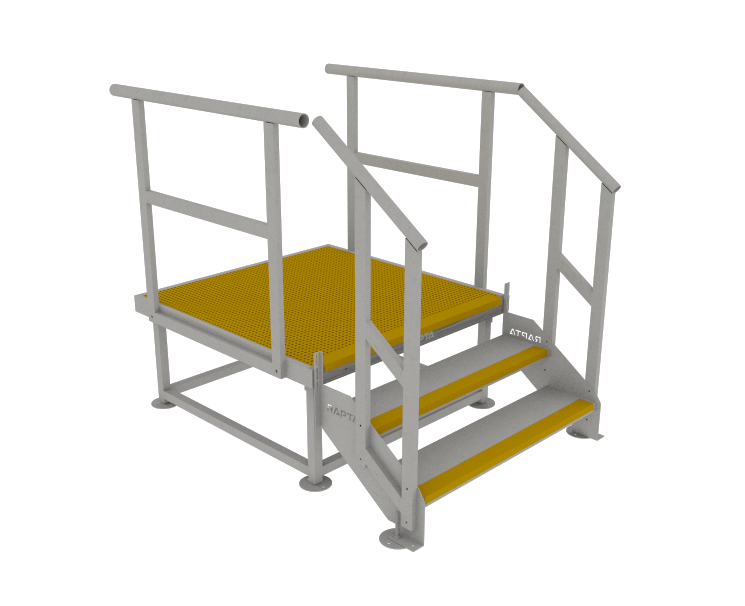

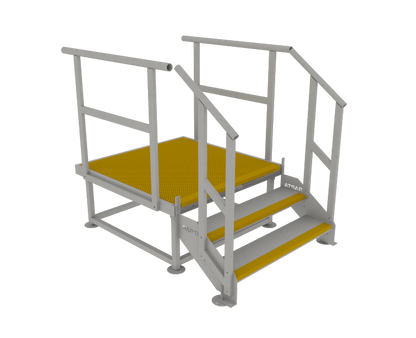

- SS20: 525mm FFL

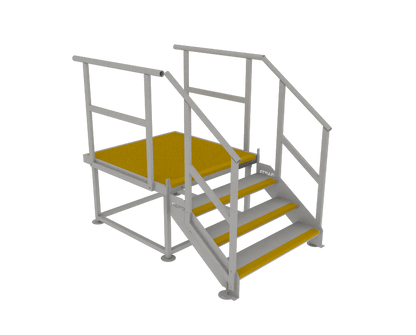

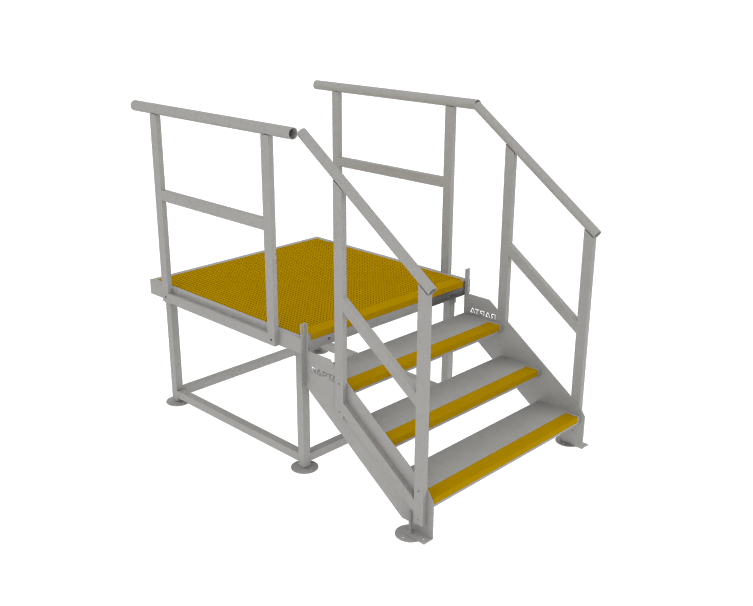

- SS30: 700mm FFL

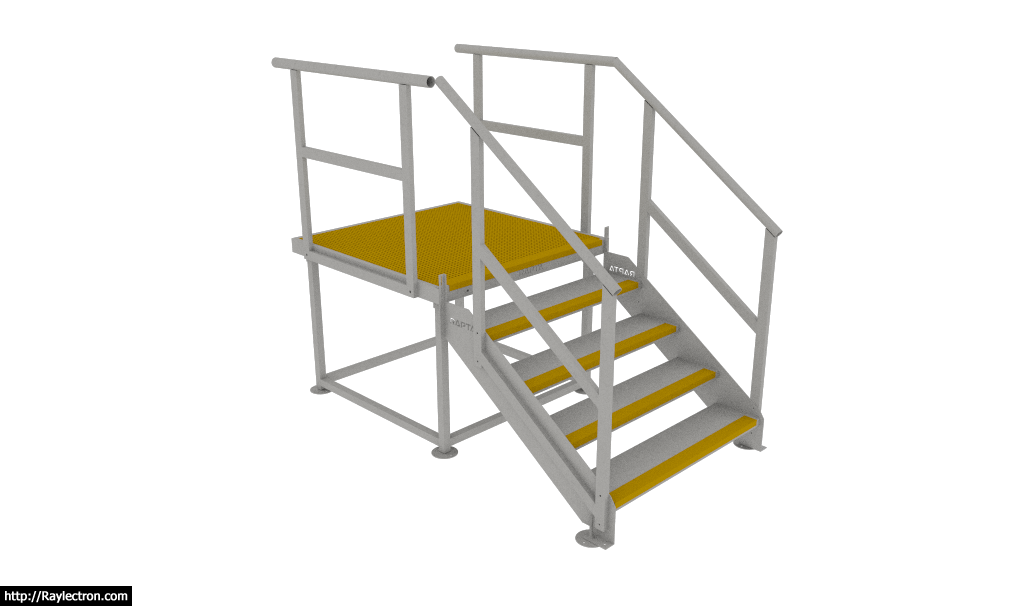

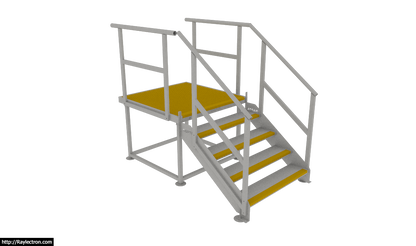

- SS40: 875mm FFL

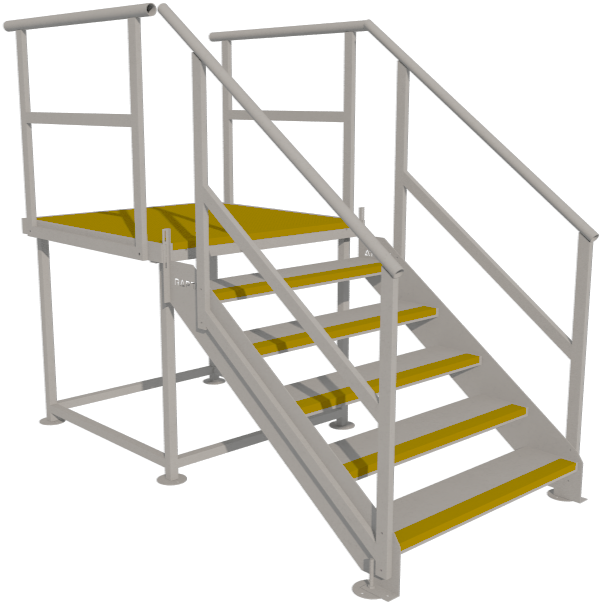

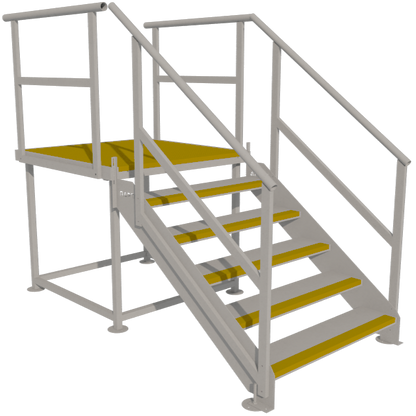

- SS50: 1050mm FFL
OVERVIEW
| Platform Size | 1200mm W × 1200mm D |
| Height Range | 320–1050mm, using interchangeable leg frames |
| Load Rating | 8.1 kN/m² |
| Surface | Yellow non-slip FRP grating |
| Frame | Hot-dip galvanised steel with adjustable feet |
| Mounting | Steel Step Adapter Plate with 2 × M12 bolts |
| Compliance | AS 1657:2018 |
All specifications are nominal. Confirm leg frame selection against your Steel Step model prior to ordering. Contact RAPTA for project-specific configuration advice.
