HEAVY DUTY STEEL STEPS – SINGLE TREAD

Single-tread prefabricated steel steps for portable building access at 160–380mm FFL. Hot-dip galvanised, 1-man carry, and reusable across projects — a permanent replacement for site-built timber steps.

Optional

FRP Stair Nosing - Yellow FRP Stair Nosing - Black

Add to Quote

QTY

Download Spec Sheet (PDF) Download Brochure (PDF)

Description

Technical Specifications

Stop building timber steps that rot. Buy once, redeploy for years.

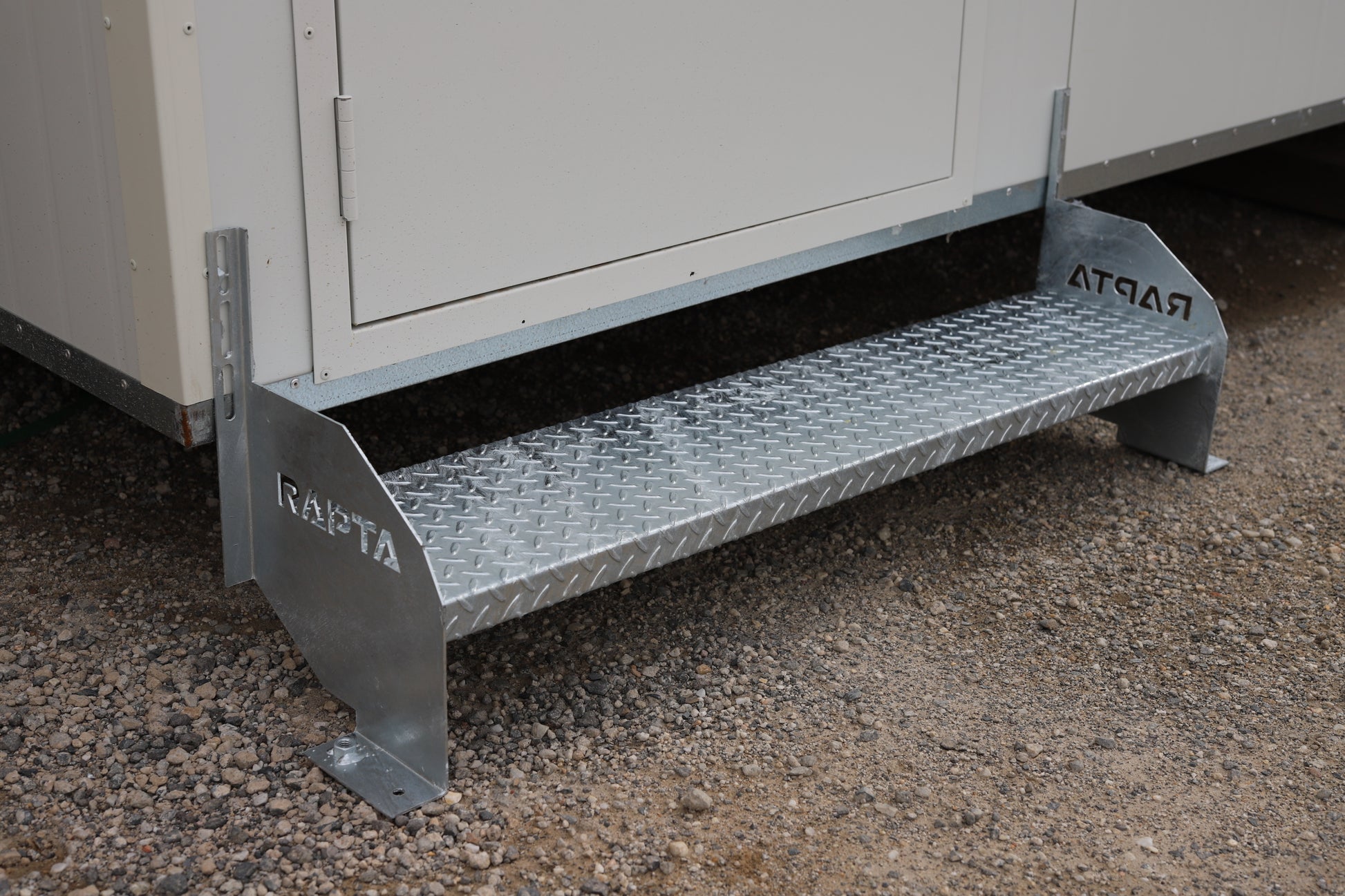

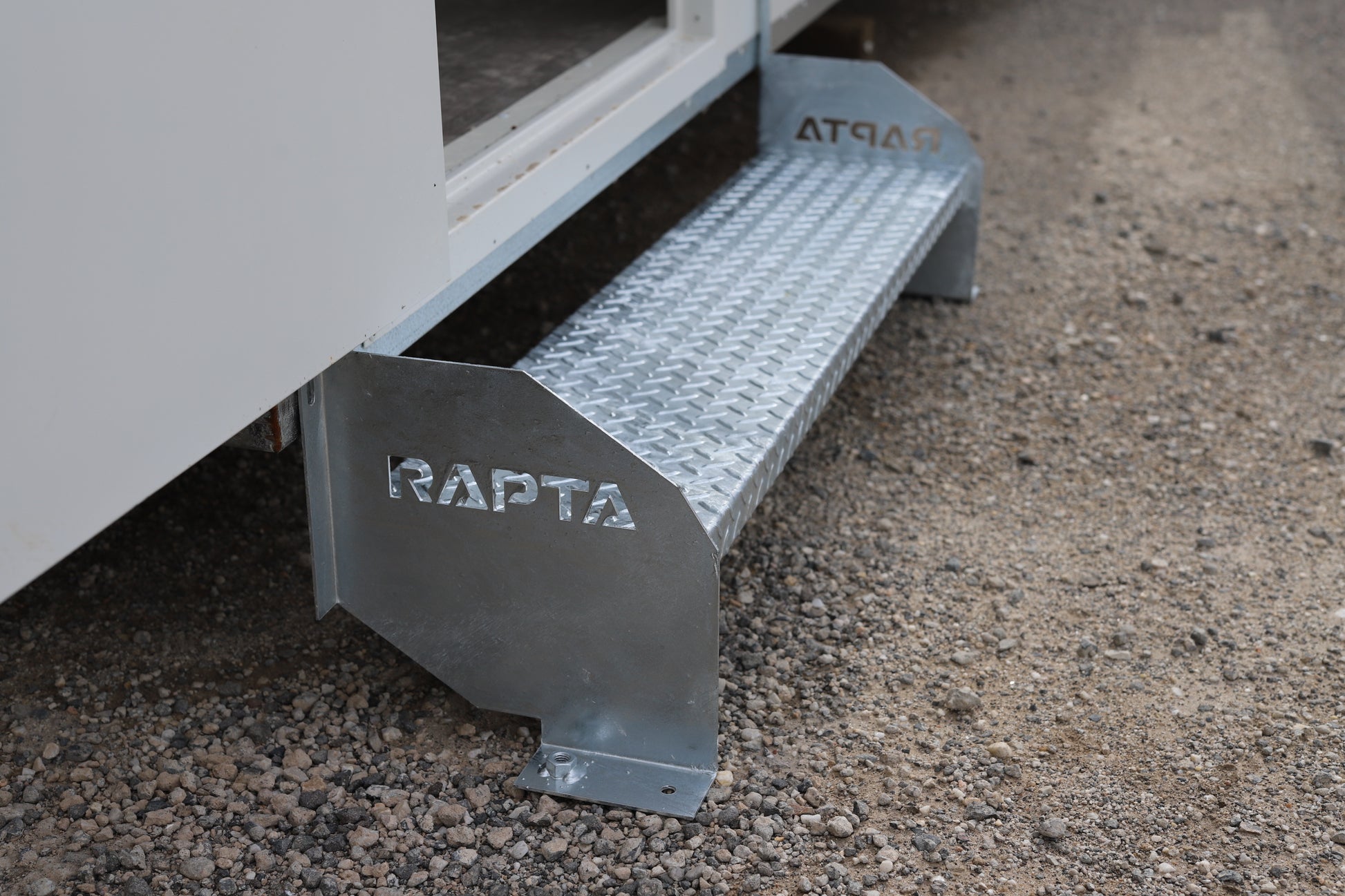

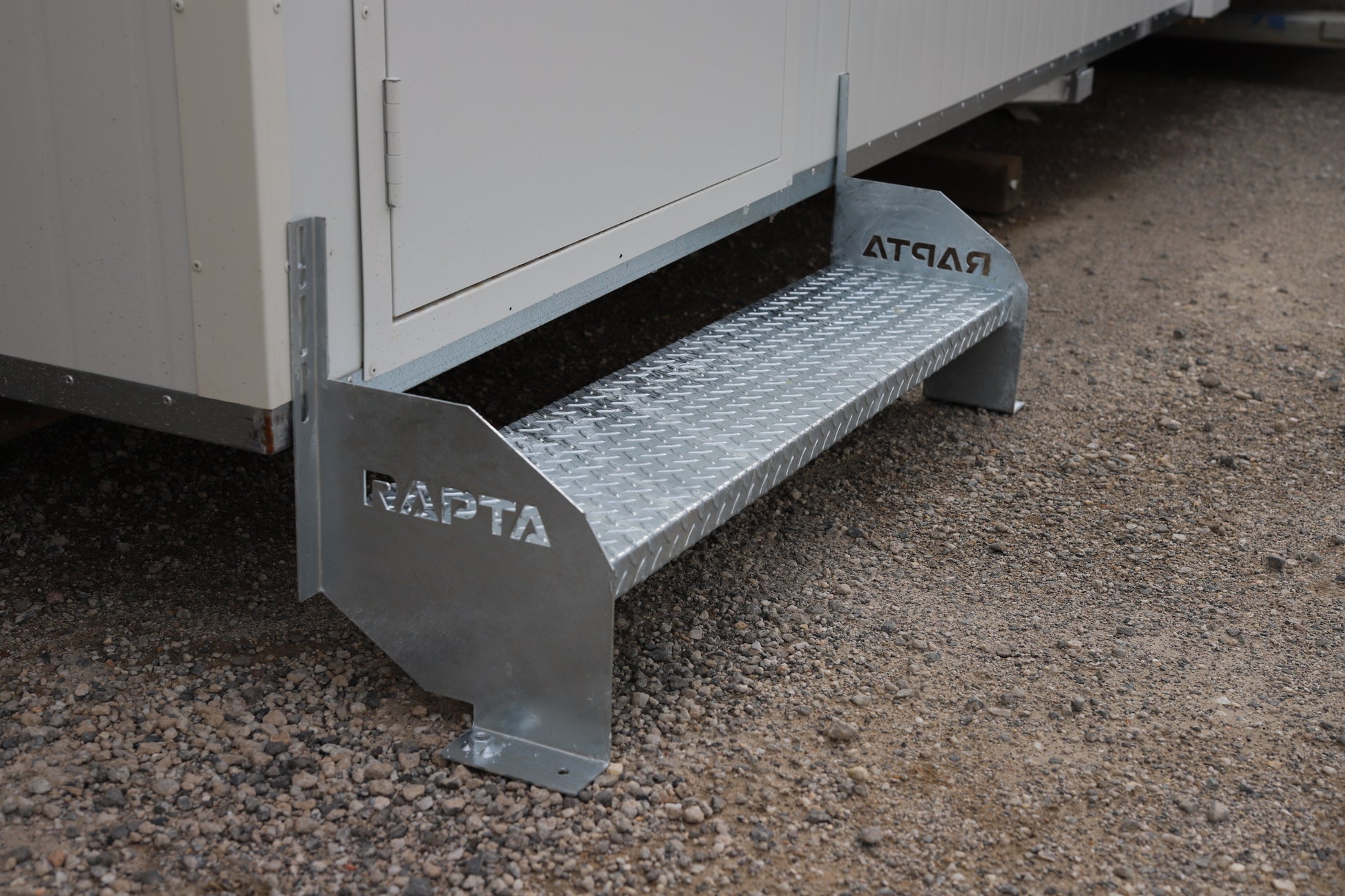

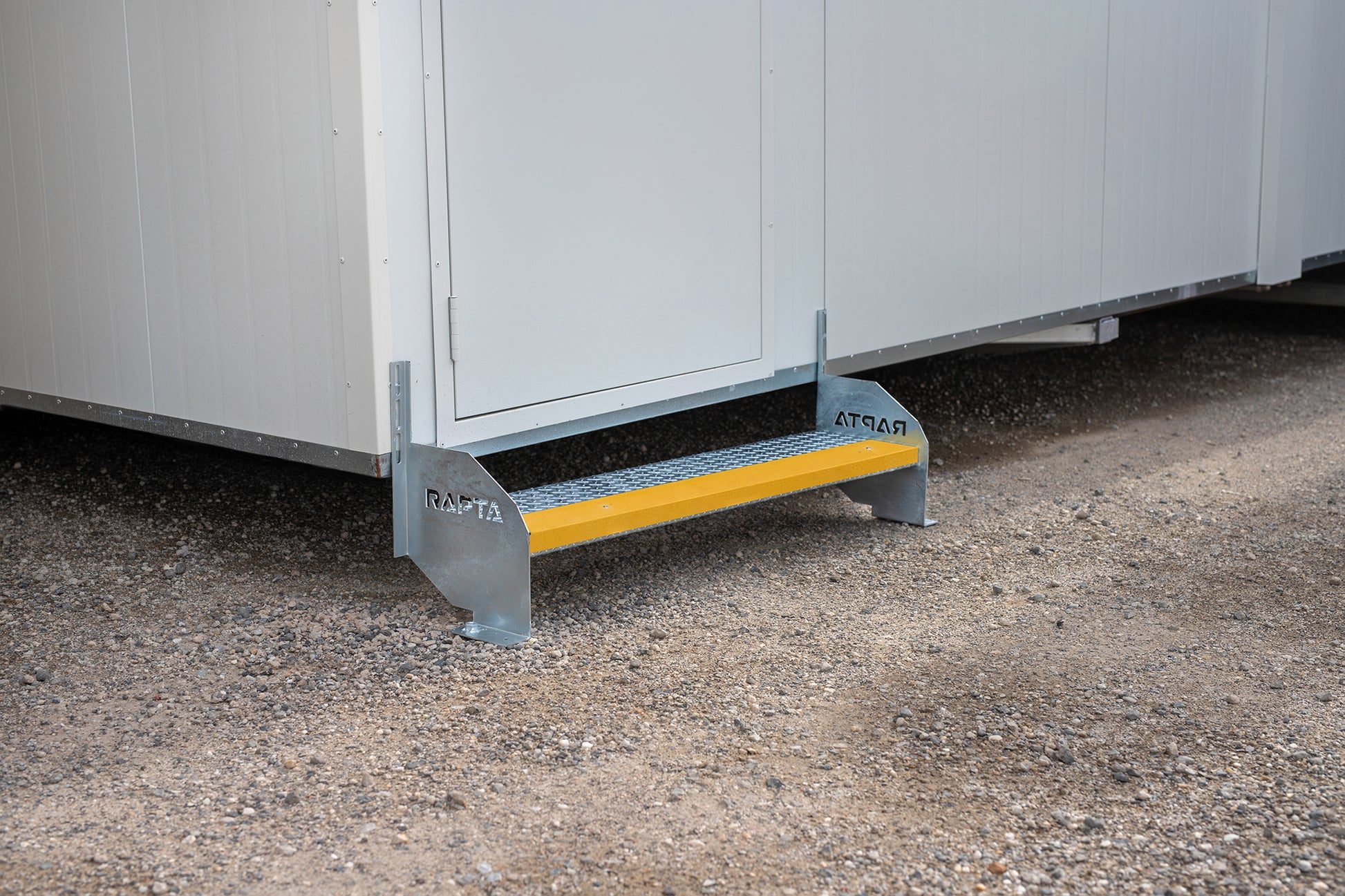

Prefabricated, hot-dip galvanised single-tread steel steps provide fast, safe access to portable buildings on site.

Suitable for finished floor levels (FFL) of 160-380mm, these 1120mm wide steps feature easy slotted fixing with 6 x 100mm holes and optional adjustable feet for uneven ground.

Engineered for tough conditions, they install fast, fit first time and perform predictably.

With 1-man carry design for easy handling and fully reusable across projects, they save hours of labour and eliminate rework compared to inconsistent site-built timber steps.

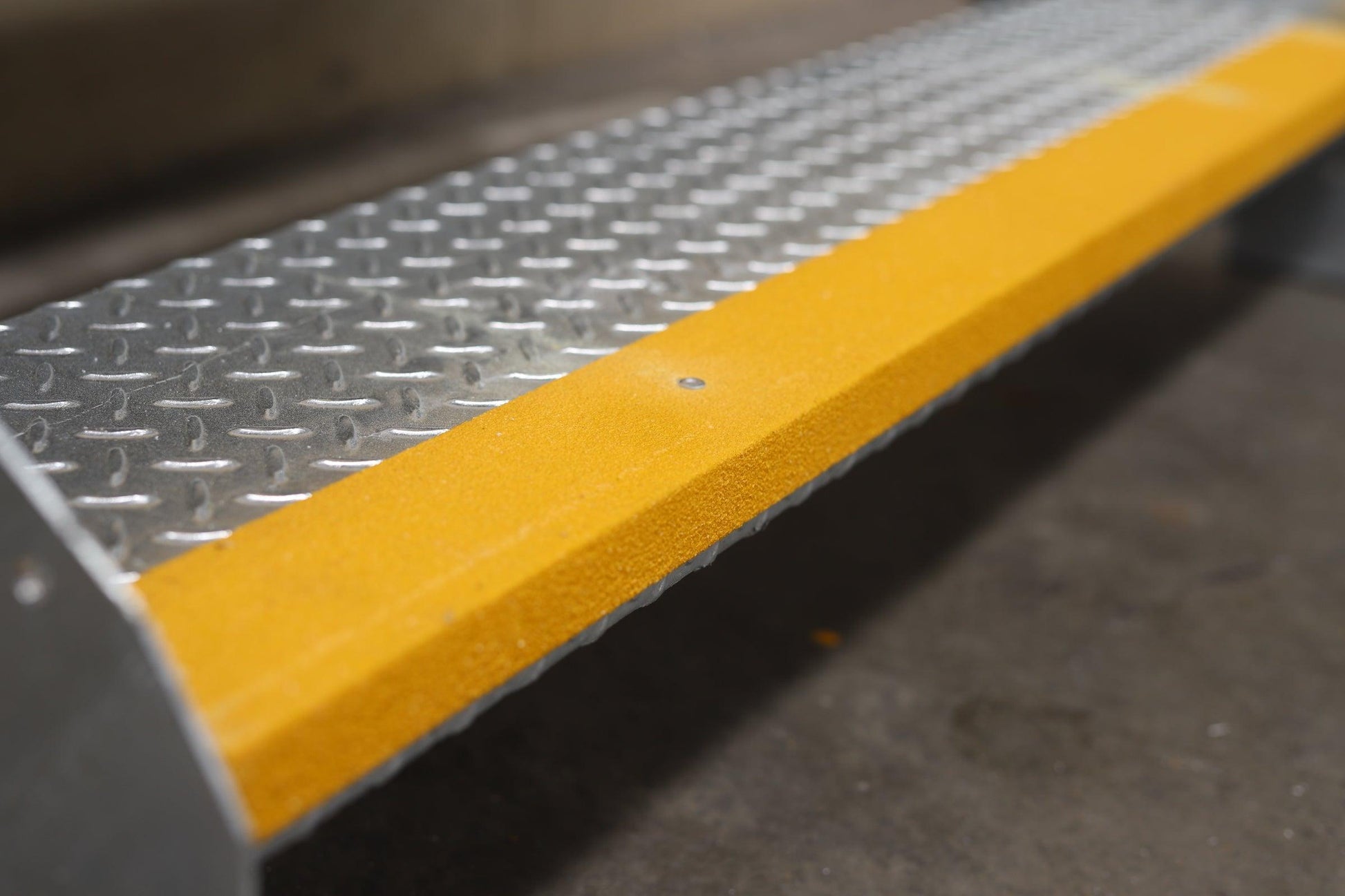

Non-slip FRP nosing - available in black or yellow - enhances traction and safety.

Installs in 10 minutes - no carpentry, no cutting
Hot-dip galvanised - built to last 20+ years

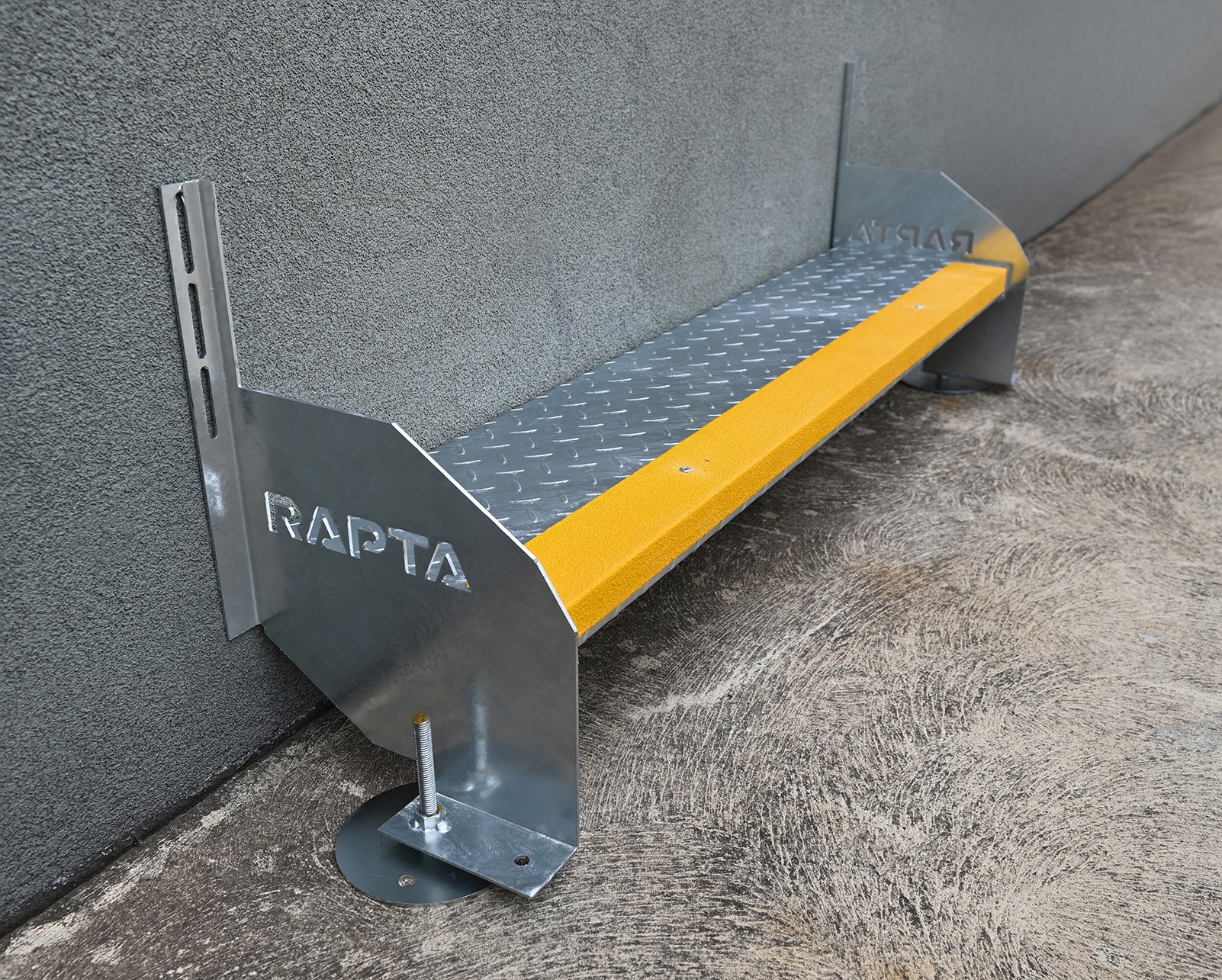

Adjustable feet - level on uneven ground
Standardised sizes - consistent every time
Reusable - dozens of projects from one set
Non-slip FRP stair nosing - Yellow as standard

OVERVIEW

SS10 - Single - 160mm rise
Weight: 12kg
For 160–380mm FFL

OPTIONS

Width: Standard (1120mm) or Double Wide (2200mm)

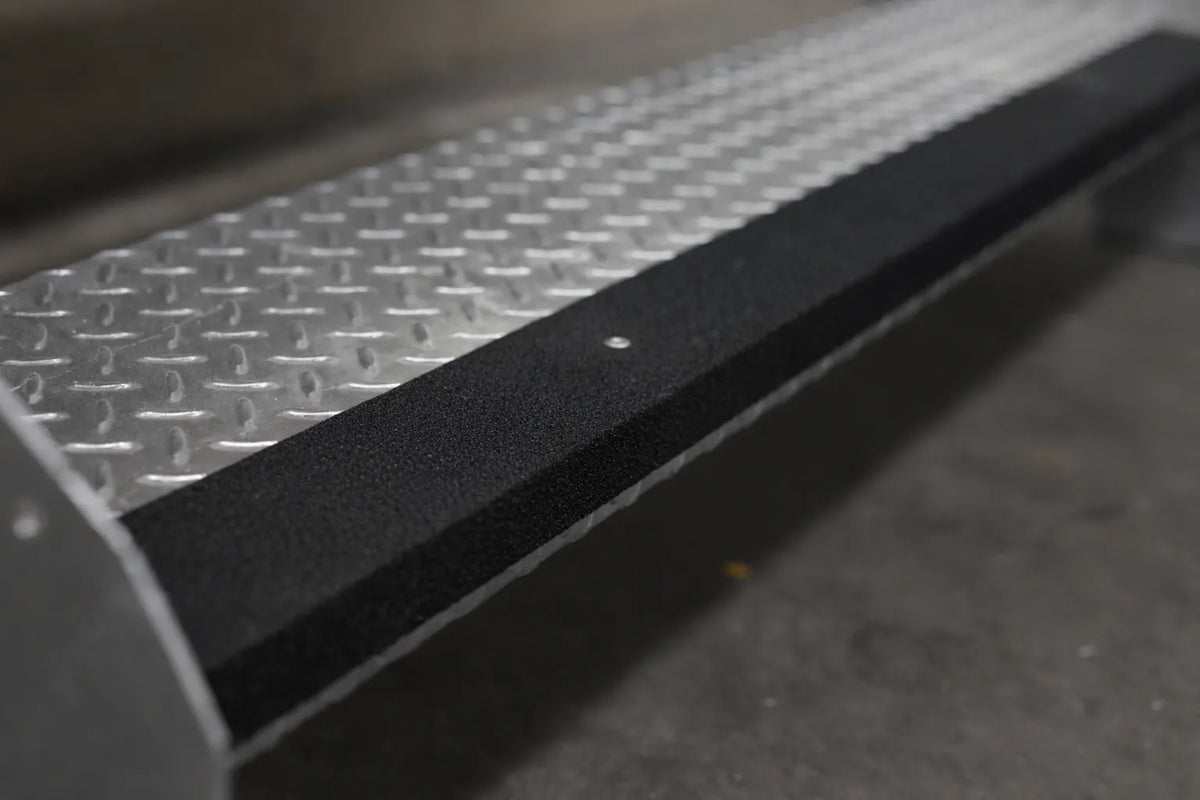

Non-slip FRP Stair Nosing - Black

Technical Specifications

Model: SS10 Single
Tread Configuration: Single tread — 1 × 160mm rise
Width: 1120mm standard (2200mm Double Wide also available)
Weight: 12kg
FFL Range: 160–380mm
Fixing: 6 × 100mm slotted holes
Surface: Non-slip FRP nosing (yellow standard, black option)
Frame: Hot-dip galvanised steel
Feet: Optional adjustable feet for uneven ground
Handling: 1-man carry design

For higher FFLs, see Two Tread (SS20, 330–525mm) or Three Tread (SS30, 525–690mm). For wider access, see Single Tread Double Width (2200mm). Contact RAPTA for project quantities.
