WASTE WATER HOLDING TANK

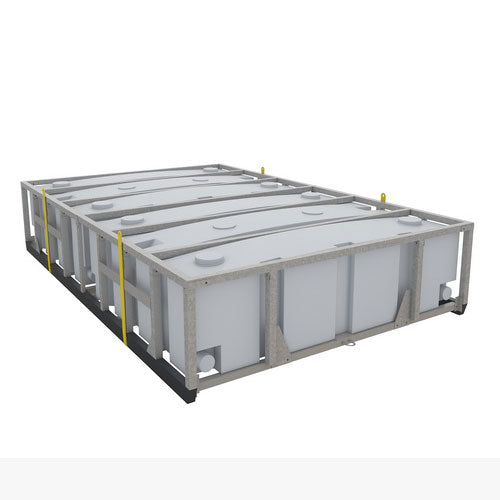

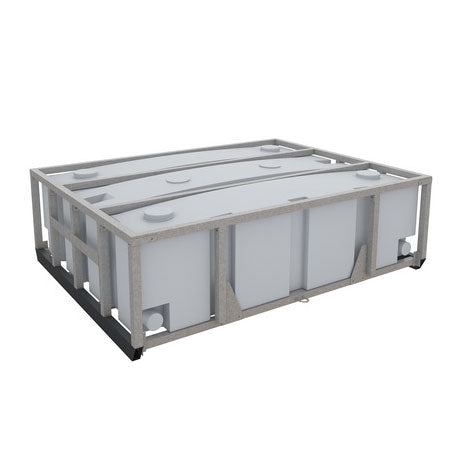

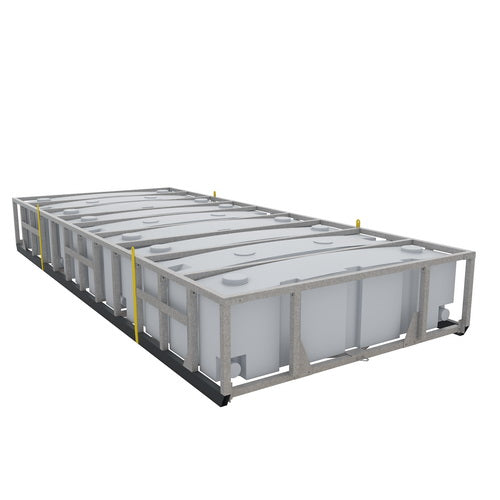

Engineering-certified effluent holding tank designed to sit beneath large ablution blocks on construction sites without a sewer connection. Rigid polyethylene tank in a heavy-duty steel frame, rated to support a building mass of up to 7,000kg plus 12 persons.
Capacity
Add to Quote
QTY
Description
Technical Specifications

Large ablution block, but no sewer connection? A Formit Waste Tank is the hygienic, long-lasting solution.

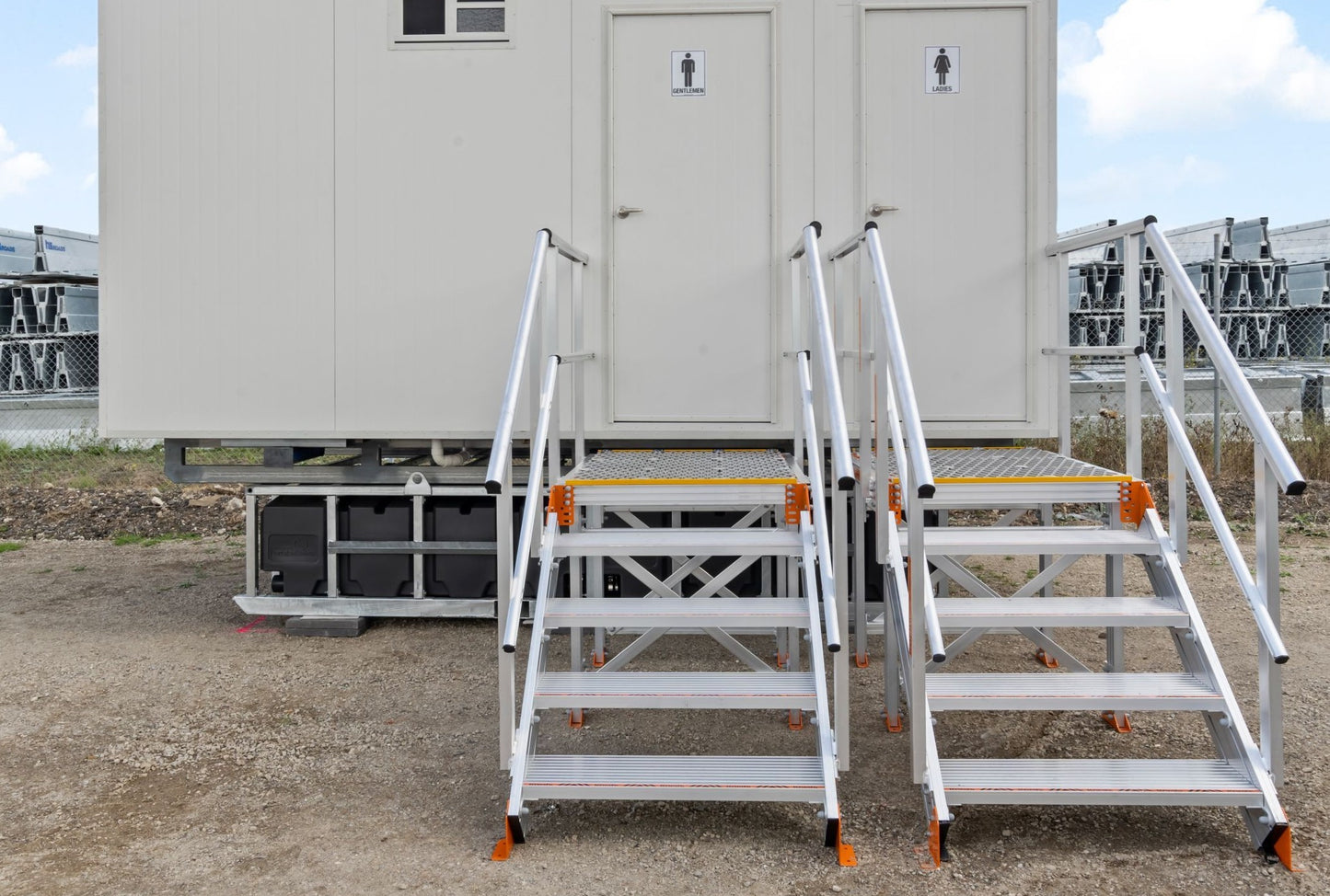

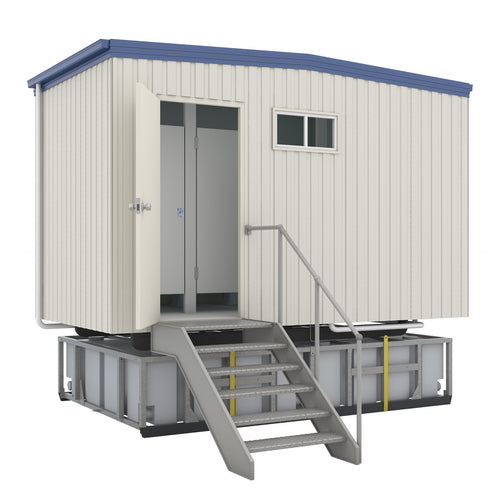

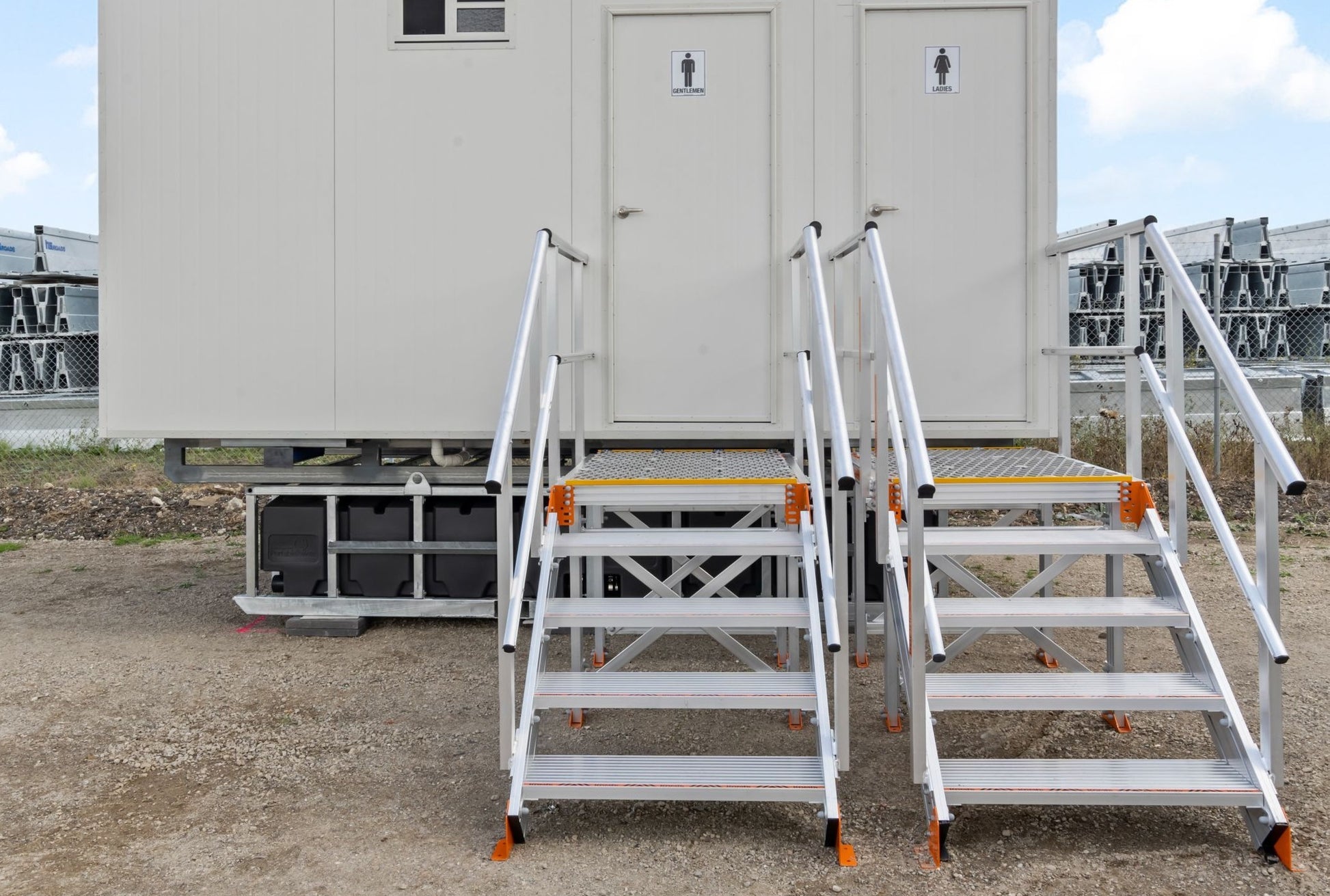

The Formit Waste Tank is an engineering-certified effluent tank, designed to sit underneath large ablution blocks — particularly on large construction sites without a sewer connection (or perhaps a special event or an army camp).

A sturdy, durable, rust-free construction, the Waste Tank is engineered from rigid polyethylene surrounded by a heavy-duty steel frame, and it’s rated to support a building mass of up to 7000kg plus 12 persons.

• Heavy duty steel frame
• Tyne pockets for forklifting
• Special gusset reinforcing
• Engineer Certified No. E3577
• Long-life polyethylene tanks will not rust
• Special locator tab/lift points
• Special double clamped triple wall connector hose for multi-connect tanks
• Steel tow hook
• Tank top connects to frame to avoid sagging of tank roof
• Special pump out port available
• Sight glass is available

Technical Specifications

  • Tank Material: Rigid polyethylene (rust-free)
  • Frame: Heavy-duty steel with special gusset reinforcing
  • Building Load Rating: Up to 7,000kg + 12 persons
  • Certification: Engineer Certified No. E3577
  • Handling: Forklift tyne pockets, locator tab/lift points, steel tow hook
  • Connection: Double-clamped triple-wall connector hose for multi-tank linking

Options

  • Pump-out port
  • Sight glass


Designed for large ablution blocks on construction sites, events, and remote facilities without sewer connection. Contact RAPTA to confirm sizing, certification documentation, or multi-tank configuration.
